Description

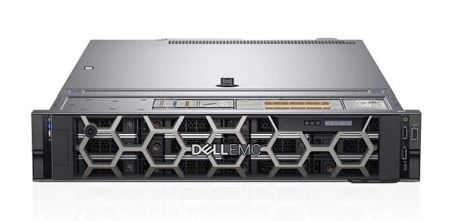

Dell PowerEdge R540 Rack Server
Processor: Custom Configured – Up to two Intel Xeon Scalable processors, up to 20 cores per processor
Operating System: No Operating System
Memory: Custom Configured – 16 DDR4 DIMM slots, Supports RDIMM /LRDIMM, speeds up to 2666, 512GB max – Supports registered ECC DDR4 DIMMs only
Hard Drive: Custom Configured
Drive Bays
Front drive bays: Up to 12 x 3.5” SAS/SATA (HDD/SSD) max 120TB
Rear drive bays: up to 2 x 3.5 SAS/SATA HDD
Optional DVD-ROM, DVD+RW
Embedded Management: IPMI 2.0 compliant
iDRAC9 with Lifecycle Controller (Basic, Express, Enterprise)
Quick Sync 2 wireless module optional
Fans: Hot plug power supplies with full redundancy option
Warranty: 3 Year Basic Hardware Warranty Repair, 5X10 HW-Only, 5×10 NBD On-site
Slots: 2 x PCIe 3.0 slots + 1 slot for internal storage
Storage Controller Internal controllers: PERC H330, H730p, H740p, HBA330, Software RAID (SWRAID) S140
Boot Optimized Storage Subsystem: HWRAID 2 x M.2 SSDs 120GB, 240 GB
Network Controller: 2 x 1GE LOM
(optional) OCP 2 x 10GE SFP+ or BaseT or 2 x 1GE
Power: Titanium 750W, Platinum 495W, 750W and 1100W 240HVDC 750W
Security: TPM 1.2/2.0 optional – Cryptographically signed firmware – Secure Boot – System Lockdown – Secure erase
Availability: Hot-swap 3.5” front access hard drives; Hot-swap 2.5” front access hard drives; Hot-plug power supply units
Chassis: 2U Rack Server
