Buy Dell PowerEdge R640 Server | Custom Configured

Call for Price

For quantity, educational or government discounts on Dell PowerEdge R640 Rack Servers please contact the Bar None Sales Team at 844-800-8873 or via email at

Bar None Technologies collaborates with Dell EMC and we are proud to offer the full spectrum of Enterprise products from the Dell EMC portfolio.

Bar None Technologies carries the Dell PowerEdge R640 G14 Rack Servers. The PowerEdge R640 is the ideal dual-socket platform for dense scale-out data center computing and storage. Benefit from the flexibility of 2.5” or 3.5” drives, the performance of NVMe and embedded intelligence to ensure optimized application performance in a secure platform. With embedded diagnostics and SupportAssist, the Dell PowerEdge R640 delivers maximum uptime in a worry-free environment. The ideal workloads include dense software-defined storage, service providers, dense private cloud, virtualization and HPC.

Our dedicated team of professionals are more than happy to configure your server to spec and provide a quote to you within hours.

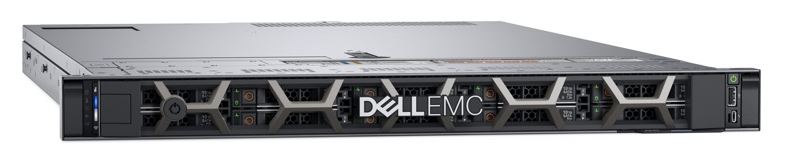

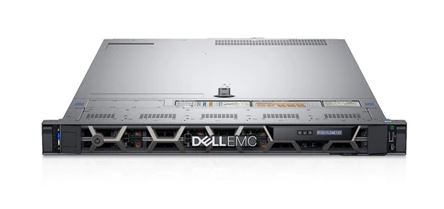

Dell PowerEdge R640 Rack Server

Processor: Custom Configured – Up to two Intel Xeon Scalable processors, up to 28 cores per processor

Operating System: No Operating System

Memory: Custom Configured – 24 DDR4 DIMM slots, Supports RDIMM /LRDIMM, speeds up to 2666, 1.5TB max – Up to 12 NVDIMM, 192 GB Max – Supports registered ECC DDR4 DIMMs only

Hard Drive: Custom Configured

Drive Bays

Front drive bays: Up to 10 x 2.5” SAS/SATA (HDD/SSD) max 58TB

Up to 4 x 3.5” SAS/SATA, max 40TB

Rear drive bays: Up to 2 x 2.5” SAS/SATA/SSD/NVMe, max 12TB

Embedded Management: IPMI 2.0 compliant
iDRAC9 with Lifecycle Controller (Basic, Express, Enterprise)
Quick Sync 2 wireless module optional

Fans: Hot plug power supplies with full redundancy option

Warranty: 3 Year Basic Hardware Warranty Repair, 5X10 HW-Only, 5×10 NBD On-site

Storage Controller Internal controllers: PERC H330, H730p, H740p, HBA330, Software RAID (SWRAID) S140

Boot Optimized Storage Subsystem: HWRAID 2 x M.2 SSDs 120GB, 240 GB

External PERC RAID: H840

External HBAs non-RAID: 12 Gbps SAS HBA

Power: Titanium 750W, Platinum 495W, 750W, 1100W, and 1600W 48VDC 1100W, 380HVDC 1100W, 240HVDC 750W
Hot plug power supplies with full redundancy option Up to 8 hot plugs fans with full redundancy

Security: TPM 1.2/2.0 optional – Cryptographically signed firmware – Secure Boot – System Lockdown – Secure erase

Availability: Hot-swap 3.5” front access hard drives; Hot-swap 2.5” front access hard drives; Hot-plug power supply units

Chassis: 1U Rack Server

Additional information

Weight 25 lbs
Dimensions 28 × 24 × 20 in
