Description

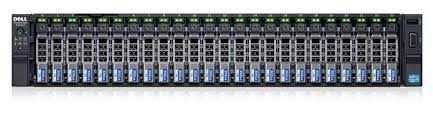

PowerEdge R730xd Server Rack Mount
Processor: Intel Xeon E5-2650 v4 2.2GHz, 30M Cache, 9.60GT/s QPI, Turbo, Hyper Thread, 12C/24T 105W Max Mem 2400MHz
Operating System: Windows Server 2012R2, Standard Edition, Factory Installed, No MEDIA, 2SKT, 2VM, NO CAL
Memory: 32GB RDIMM, 2400MT/s, Dual Rank, x4 Data Width
RAID: No RAID for H330/H730/H730P (1-24 HDDs or SSDs)
Hard Drive: 4TB 7.2K RPM SATA 6Gbps 3.5in Hot-plug Hard Drive
Warranty: 3 Year ProSupport and NBD Onsite Service
Chassis Configuration: Chassis with up to 12, 3.5″ Hard Drives
Chipset: Intel C610 series chipset
Storage: SAS, SATA, near line SAS, SSD, PCIe SSD:
Up to 81TB with 18 x 1.8” 960GB SATA SSD = 8 x 3.5” SATA/near line SAS HDD
Up to 46.8TB with 24 x 2.5” 1.8TB hot-plug SAS HDD + 2 x 2.5” 1.8TB hot-plug SAS HDD
Up to 131.6TB with 12 x 3.5 8TB near line SAS HDD = 4 x 3.5 8TB near line SAS + 2 x 2.5 1.8TB SAS HDD or SSD
Drive Bays: Internal hard drive bay and hot-plug backplane:
Up to 18 x 1.8” SSD: SATA
Up to 24 x 2.5” + 2 x 2.5” HDD: SAS, SATA, Near-line SAS SSD: SAS, SATA, up to 4 NVMe Express Flash PCIe
Up to 16 x 3.5” + 2 x 2.5” HDD: SAS, SATA, Near-line SAS SSD: SAS, SATA
Slots:
Slot 1: Half Length, Half Height, PCIe Gen3 x8 (x16 connector) low profile bracket
Slot 2: Half Length, Half Height, PCIe Gen3 x8 (x16 connector) low profile bracket
Slot 3: Half Length, Half Height, PCIe Gen3 x8 (x16 connector) low profile bracket
Slot 4: Full Length, Full Height, PCIe Gen3 x16 (x16 connector)
Slot 5: Full Length, Full Height, PCIe Gen3 x8 (x16 connector)
Slot 6: Full Length, Full Height, PCIe Gen3 x16 (x16 connector)
Dedicated RAID card
RAID Controller Options:
Internal: PERC S130 (SW RAID), PERC H330, PERC H730, PERC H730P
External: PERC H830
Network Controller: 4 x 1Gb, 2 x 10Gb
Power: 1100W 86 mm 13G (Platinum+)
1100W DC, 86 mm 12G (Gold)
750W AC, 86 mm 12G (Platinum)
750W AC, 86 mm 12G (Diamond)
495W AC, 86 mm (Platinum)
Chassis: 2U Rack Server
H: 8.73 cm (3.44 in.) x W: 44.40 cm (17.49 in.) x D: 68.40 cm (26.92 in.)
