Description

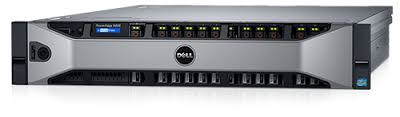

Dell PowerEdge R830 Server Rack Mount
Processor: Custom Configured
Operating System: No Operating System
Memory: Custom Configured
RAID: No RAID for H330/H730/H730P (1-16 HDDs or SSDs)
Hard Drive: Custom Configured
Warranty: Dell EMC OEM Warranties Available
Chassis Configuration: Chassis with up to 8, 2.5″ Hard Drives
Chipset: Intel C612
Storage: 16 x 2.5” SATA/SAS SSD; SAS HDD (15K, 10K); Near line SAS HDD (7.2K)
Drive Bays: Up to 16 x 2.5”
Slots: 7 PCIe slots
2 x16 half-length, full-height
1 x8 half-length, full-height
3 x8 half-length, half-height
1 x8 half-length, full-height for the RAID controller
RAID Controller Options:
Internal controllers: PERC H330, PERC H730, PERC H730P
External HBAs (RAID): PERC H830
External HBAs (non-RAID): 12Gbps SAS HBA
Power: Platinum 750W AC, auto-ranging; Platinum 1600W AC, auto-ranging
Chassis: 2U Rack Server
