Description

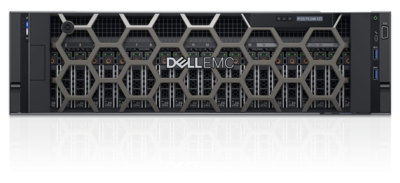

Dell PowerEdge R940 Rack Server
Tech Specs and Customization
Processor: Custom Configured – Up to four Intel Xeon Scalable processors, up to 28 cores per processor
Operating System: Canonical Ubuntu LTS Citrix XenServer Microsoft Windows Server with Hyper-V Red Hat Enterprise Linux SUSE Linux Enterprise Server VMware ESXiSystem
Memory: Custom Configured – 48 DDR4 DIMM slots, Supports RDIMM /LRDIMM, speeds up to 2666, 6TB max – Up to 12 NVDIMM, 384 GB Max – Supports registered ECC DDR4 DIMMs only
Hard Drive: Custom Configured
Drive Bays
Front drive bays: Up to 24 x 2.5” Up to 12 x NVMe – Max 122 TB
Embedded Management: IPMI 2.0 compliant
iDRAC9 with Lifecycle Controller (Basic, Express, Enterprise)
Quick Sync 2 wireless module optional
Fans: Hot plug power supplies with full redundancy option
Warranty: 3 Year Basic Hardware Warranty Repair, 5X10 HW-Only, 5×10 NBD On-site
Storage Controller Internal controllers: PERC H330, H730p, H740p, HBA330, Software RAID (SWRAID) S140
Boot Optimized Storage Subsystem: HWRAID 2 x M.2 SSDs 120GB, 240 GB
External PERC RAID: H840
External HBAs non-RAID: 12 Gbps SAS HBA
Power: Platinum 1100W, 1600W, 2000W, 2400W, 336-380VDC 1100W, Gold 48VDC 1100W
Hot plug power supplies with full redundancy option Up to 8 hot plugs fans with full redundancy
Security: TPM 1.2/2.0 optional – Cryptographically signed firmware – Secure Boot – System Lockdown – Secure erase
Availability: Hot-swap 3.5” front access hard drives; Hot-swap 2.5” front access hard drives; Hot-plug power supply units
Chassis: 3U Rack Server
