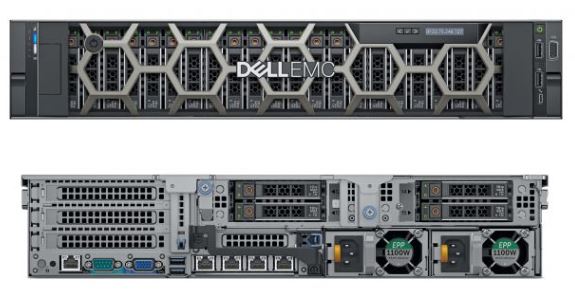

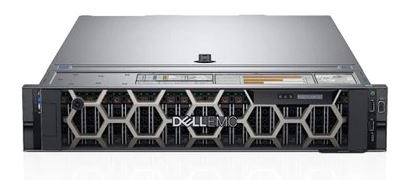

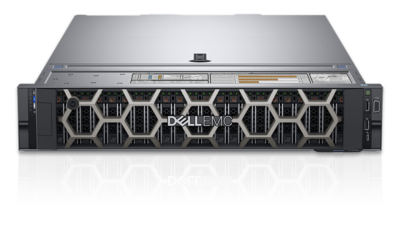

Dell PowerEdge R740xd Rack Server

Tech Specs and Customization

Processor: Custom Configured – Up to two Intel Xeon Scalable processors, up to 28 cores per processor

Operating System: Canonical Ubuntu LTS Citrix XenServer Microsoft Windows Server with Hyper-V Red Hat Enterprise Linux SUSE Linux Enterprise Server VMware ESXiSystem

Memory: Custom Configured – 24 DDR4 DIMM slots, Supports RDIMM /LRDIMM, speeds up to 2666, 3TB max – Up to 12 NVDIMM, 192 GB Max – Supports registered ECC DDR4 DIMMs only

Hard Drive: Custom Configured

Drive Bays

Front drive bays: Up to 24 x 2.5” SAS/SATA (HDD/SSD) max 153TB – Up to 12 x 3.5” SAS/SATA, max 120TB

Mid bay: Up to 4 x 3.5″ drives, Max 40TB – Up to 4x 2.5″ SAS/SSD/NMVe, Max 25TB

Rear bays: Up to 4 x 2.5″ max 25TB – Up to 2 x 3.5″ max 20TB

Embedded Management: IPMI 2.0 compliant

iDRAC9 with Lifecycle Controller (Basic, Express, Enterprise)
Quick Sync 2 wireless module optional

Fans: Hot plug power supplies with full redundancy option

Warranty: 3 Year Basic Hardware Warranty Repair, 5X10 HW-Only, 5×10 NBD On-site

Storage Controller Internal controllers: PERC H730p, H740p, HBA330, Software RAID (SWRAID) S140

Boot Optimized Storage Subsystem: HWRAID 2 x M.2 SSDs 120GB, 240 GB

External PERC RAID: H840

External HBAs non-RAID: 12 Gbps SAS HBA

Power: Titanium 750W, Platinum 495W, 750W, 1100W, and 1600W 48VDC 1100W, 380HVDC 1100W, 240HVDC 750W
Hot plug power supplies with full redundancy option Up to 6 hot plugs fans with full redundancy

Security: TPM 1.2/2.0 optional – Cryptographically signed firmware – Secure Boot – System Lockdown – Secure erase

Availability: Hot-swap 3.5” front access hard drives; Hot-swap 2.5” front access hard drives; Hot-plug power supply units

Chassis: 2U Rack Server
