Description

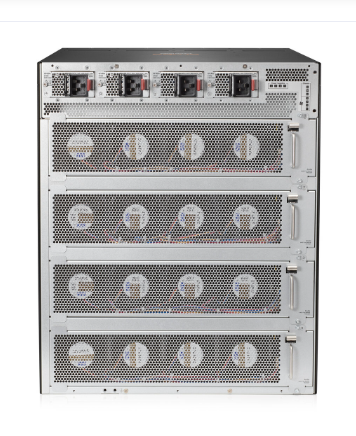

Aruba JL741A CX6410 PoE+ L3 Managed Rack-Mountable Switch
Product Description | HPE Aruba 6410 – switch – 100 ports – managed – rack-mountable |
Device Type | Switch – 100 ports – L3 – managed – stackable |
Enclosure Type | Rack-mountable 12U |
Subtype | Gigabit Ethernet |
Ports | 96 x 10/100/1000 (PoE+) + 4 x 1 Gigabit / 10 Gigabit / 25 Gigabit / 50 Gigabit SFP56 (uplink) |
Power Over Ethernet (PoE) | PoE+ |
Performance | Switching capacity: 28 Tbps ¦ Throughput: 20 Bpps |
Capacity | Switched virtual interfaces (SVIs): 2000 ¦ IPv4 host table capacity: 28800 ¦ IPv6 host table capacity: 28800 ¦ IPv4 routes (Unicast): 64000 ¦ IPv6 routes (Unicast): 64000 ¦ IPv4 routes (Multicast): 8000 ¦ IPv6 routes (Multicast): 8000 ¦ IGMP groups: 8000 ¦ MLD groups: 4000 ¦ IPv4 ACL entries (ingress): 5000 ¦ IPv6 ACL entries (ingress): 1250 ¦ MAC ACL entries (ingress): 5000 ¦ IPv4 ACL entries (egress): 2000 ¦ IPv6 ACL entries (egress): 500 ¦ MAC ACL entries (egress): 2000 |
MAC Address Table Size | 29490 entries |
Jumbo Frame Support | 9198 bytes |
Routing Protocol | EGP, BGP-4, IGMPv2, IGMP, VRRP, OSPFv2, IGMPv3, OSPFv3, MSDP, static IPv4 routing, static IPv6 routing, ECMP, policy-based routing (PBR), MLDv2, MLD, Bidirectional Forwarding Detection (BFD) |
Remote Management Protocol | RMON, Telnet, SNMP 3, SNMP 2c, HTTPS, TFTP, SSH, SSH-2, CLI, XRMON, SFTP |
Features | DHCP support, ARP support, VLAN support, auto-uplink (auto MDI/MDI-X), IGMP snooping, Syslog support, High Availability, firmware upgradable, sFlow, Per-VLAN Spanning Tree (PVST), Multiple Spanning Tree Protocol (MSTP) support, Access Control List (ACL) support, Quality of Service (QoS), Jumbo Frames support, MLD snooping, Uni-Directional Link Detection (UDLD), Rapid Per-VLAN Spanning Tree Plus (PVRST+), Deficit Weighted Round Robin (DWRR), LLDP support, Management Information Base (MIB), DHCP protection, dual firmware images, Multiple VLAN Registration Protocol (MVRP), packet storm protection, Class of Service (CoS), Strict Priority (SP), broadcast storm protection, Type of Service (ToS), Bridge protocol data unit (BPDU), Virtual Extensible LAN (VXLAN), Multicast Storm Protection, Network Timing Protocol (NTP), RA guard, Protocol Independent Multicast (PIM), VLAN Tagging, Rapid Reconfiguration of Spanning Tree (RSTP), IPv4 and IPv6 dual stack, IP multicast, Bootstrap Router (BSR) Mechanism, Virtual Switch Extension (VSX), dynamic IPv6 lockdown, ND snooping, Unicast Storm protection, Microsoft Network Load Balancer (NLB) |
Compliant Standards | IEEE 802.1D, IEEE 802.1Q, IEEE 802.1p, IEEE 802.3af, IEEE 802.3ad (LACP), IEEE 802.1w, IEEE 802.1x, IEEE 802.3ae, IEEE 802.1s, IEEE 802.1t, IEEE 802.1v, IEEE 802.1ab (LLDP), IEEE 802.1ak, IEEE 802.3at, IEEE 802.1AX, IEEE 802.3bt |
Power Redundancy | Optional |
Dimensions (WxDxH) | 17.4 in x 17.7 in x 20.8 in |
Weight | 128.53 lbs |
Manufacturer Warranty | Limited lifetime warranty |
- The Aruba JL741A, CX6410 – Switch – L3 – managed – 96 x 10/100/1000 (PoE+) + 4 x 1 Gigabit / 10 Gigabit / 25 Gigabit / 50 Gigabit SFP56 (uplink) – rack-mountable – PoE+
- The Aruba JL741A, CX 6400 Switch Series is a modern, flexible, and intelligent family of AOS-CX modular switches ideal for enterprise campus and data center deployments.
- The Aruba JL741A CX6410 a cloud-centric design that combines a fully programmable OS with the Aruba Network Analytics Engine, the Aruba CX 6400 extends industry-leading monitoring and troubleshooting capabilities across the network.
- The Aruba JL741A CX 6400 Switch Series is a modern, flexible, and intelligent family of AOS-CX modular switches ideal for enterprise campus and data center deployments.
- The Aruba JL741A CX6410 a cloud-centric design that combines a fully programmable OS with the Aruba Network Analytics Engine, the Aruba CX 6400 extends industry-leading monitoring and troubleshooting capabilities across the network.
- Powerful Aruba Gen7 ASIC architecture delivers fast, non-blocking performance, meaning your network is ready for tomorrow’s unpredictable demands.
- Aruba Virtual Switching Extension (VSX) brings high availability and enables non-disruptive fast upgrades with simplified management. Support of Aruba Net Edit and the Aruba CX Mobile App verify configurations are flawless and easy to deploy.
- This series offers 5 and 10 slot compact chassis with a choice of line rate interfaces including 25GbE, 100GbE, and full density 60W PoE with HPE Smart Rate multi-gigabit Ethernet ideal for access, aggregation and core deployments.
MPN: JL741A#ABA
