Description

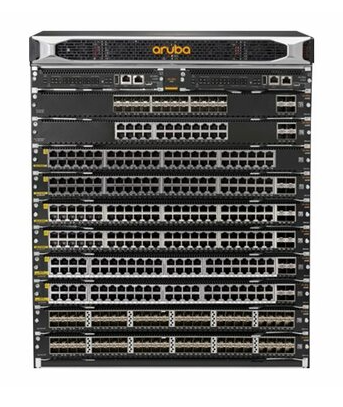

Aruba R0X27A CX6410 Bundled L4 Managed Rack Mountable Chassis Switch
| Product Description | Aruba R0X27A CX6410 Switch Bundle – switch – managed – rack-mountable – with HPE Aruba 6410 Chassis Switch |
| Device Type | Switch – L4 – managed – stackable – with HPE Aruba CX6410 Chassis Switch |
| Enclosure Type | Front to back airflow rack-mountable 7U |
| Performance | Routing/switching capacity: 28 Tbps ¦ Throughput: 20 Bpps |
| Capacity | Virtual interfaces (VLANs): 2000 ¦ IPv4 routing table entries: 32000 ¦ IPv6 routing table entries: 32000 ¦ Multicast routes: 8000 ¦ Unicast entries (IPv6): 64000 ¦ Unicast entries (IPv4): 64000 ¦ IGMP groups: 8000 ¦ MLD groups: 4000 |
| Jumbo Frame Support | Yes |
| Routing Protocol | OSPF, BGP, OSPFv3 |
| Remote Management Protocol | SNMP 1, SNMP 2, SNMP 3, IPv4, IPv6 |
| Features | Power over Ethernet (PoE), Quality of Service (QoS), Deficit Weighted Round Robin (DWRR), non-blocking ports, Strict Priority (SP), CPU protection, Protocol Independent Multicast (PIM), Bootstrap Router (BSR) Mechanism, draft-ietf-savi-mix, Virtual Switch Extension (VSX) |
| Compliant Standards | IEEE 802.1D, IEEE 802.1Q, IEEE 802.3ab, IEEE 802.3af, IEEE 802.1w, IEEE 801.1p, IEEE 802.1t, IEEE 802.1v, IEEE 802.3ak, IEEE 802.3at, IEEE 802.3ax, IEEE 802.3bt |
| Power | AC 120/230 V (50/60 Hz) |
| Dimensions (WxDxH) | 17.4 in x 17.7 in x 20.8 in |
| Weight | 117.95 lbs |
| Manufacturer Warranty | Limited lifetime warranty |
- The Aruba R0X27A 6400 Switch Series is a modern, flexible and intelligent family of modular switches ideal for access, aggregation and core in enterprise campus and data center deployments. Created for game-changing operational efficiency with built-in security and resiliency, the 6400 switches provide the foundation for high-performance networks supporting IoT, mobile and cloud applications.
- The Aruba R0X27A 6400 Switch Series is a modern, flexible, and intelligent family of AOS-CX modular switches ideal for enterprise campus and data center deployments.
- The Aruba R0X27A 6410 cloud-centric design that combines a fully programmable OS with the Aruba Network Analytics Engine, the Aruba CX 6400 extends industry-leading monitoring and troubleshooting capabilities across the network.
- Powerful Aruba Gen7 ASIC architecture delivers fast, non-blocking performance, meaning your network is ready for tomorrow’s unpredictable demands. Aruba Virtual Switching Extension (VSX) brings high availability and enables non-disruptive fast upgrades with simplified management.
- Support of Aruba Net Edit and the Aruba CX Mobile App verify configurations are flawless and easy to deploy. This series offers 5 and 10 slot compact chassis with a choice of line rate interfaces including 25GbE, 100GbE, and full density 60W PoE with HPE Smart Rate multi-gigabit Ethernet ideal for access, aggregation and core deployments.
MPN: R0X27A#ABA
