Description

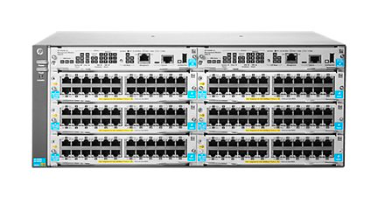

Aruba J9821A 5406R ZL2 PoE+ Managed Rack-Mountable Switch
| Product Description | HPE Aruba 5406R zl2 – switch – managed – rack-mountable |
| Device Type | Switch – managed |
| Enclosure Type | Rack-mountable 4U |
| Subtype | Gigabit Ethernet |
| Power Over Ethernet (PoE) | PoE+ |
| Performance | Throughput: 392.8 Mbps ¦ Routing/switching capacity: 528 Gbps ¦ Switching fabric bandwidth: 1015 Gbps |
| Capacity | IPv4 routing table entries: 10000 ¦ IPv6 routing table entries: 5000 |
| MAC Address Table Size | 64K entries |
| Routing Protocol | OSPF, RIP-1, RIP-2, BGP, IGMP, OSPFv2, static IP routing, IGMPv3, OSPFv3 |
| Remote Management Protocol | SNMP 1, RMON 2, RMON, SNMP 3, SNMP 2c, HTTP, SSH-2, CLI, XRMON |
| Features | VLAN support, auto-uplink (auto MDI/MDI-X), IGMP snooping, half duplex mode, full duplex mode, sFlow, Virtual Route Redundancy Protocol (VRRP) support, Access Control List (ACL) support, Quality of Service (QoS), MLD snooping, STP Root Guard, Uni-Directional Link Detection (UDLD), Rapid Per-VLAN Spanning Tree Plus (PVRST+), LLDP support, Port Security, DHCP protection, Class of Service (CoS), sFlow v5, Generic Attribute Registration Protocol (GARP), Type of Service (ToS) |
| Compliant Standards | IEEE 802.1Q, IEEE 802.3ab, IEEE 802.1p, IEEE 802.3af, IEEE 802.3ad (LACP), IEEE 802.1x, IEEE 802.1s, IEEE 802.1ad, IEEE 802.1v, IEEE 802.1ab (LLDP), IEEE 802.3at, IEEE 802.3az |
| Dimensions (WxDxH) | 17.5 in x 17.8 in x 6.9 in |
| Weight | 24.49 lbs |
| Manufacturer Warranty | Limited lifetime warranty |
- The Aruba J9821A 5400R zl2 Switch Series brings enterprise-class resiliency and innovative flexibility to mobile-first networks.
- The Aruba J9821A 5406R advanced Layer 3 modular switch provides scalable aggregation with HPE Smart Rate multi-gigabit ports for high-speed 802.11ac devices, Virtual Switching Framework (VSF) stacking technology, hitless failover, line rate 40GbE, robust QoS and security and requires no software licensing.
- The Aruba J9821A 5400R is easy to deploy and manage with advanced security and network management tools like Aruba ClearPass Policy Manager, Aruba Airwave and cloud-based Aruba Central.
MPN: J9821A#ABA
