Buy R2H23A Aruba AP-504 (US) Dual Radio 2×2:2 802.11ax External Antennas Unified Campus AP

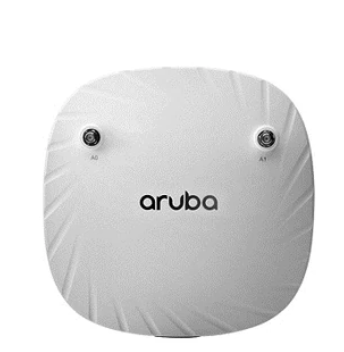

Product Description HPE Aruba AP-504 (US) – Campus – wireless access point – Bluetooth, Wi-Fi 6
Device Type Wireless access point
Form Factor External – indoor
Data Link Protocol IEEE 802.11b, IEEE 802.11a, IEEE 802.11g, IEEE 802.11n, IEEE 802.11ac, Bluetooth 5.0, IEEE 802.11ax (Wi-Fi 6)
Frequency Band 2.4 GHz, 5 GHz
Performance Maximum data rate (2.4 GHz): 574 Mbps ¦ Maximum data rate (5 GHz): 1.2 Gbps ¦ Aggregate throughput: 1.774 Gbps
Capacity Wireless clients per Wi-Fi radio: 256 ¦ BSSIDs per radio: 16 ¦ OFDMA units: 8
Included Accessories Mounting bracket
OS Required ArubaOS, InstantOS
Power Over Ethernet (PoE) Supported PoE
Dimensions (WxDxH) 6.3 in x 6.3 in x 1.5 in
Weight 17.64 oz
Manufacturer Warranty Limited lifetime warranty
  • HPE Aruba AP-504 (US) – Campus – wireless access point – Bluetooth 5.0 – Bluetooth, Wi-Fi 6 – 2.4 GHz, 5 GHz
  • These affordable Wi-Fi 6 access points provide high-performance connectivity for any organization experiencing growing numbers of mobile, IoT and mobility requirements. With a maximum aggregate data rate of 177 Gbps (1.774 Gbps), they deliver the speed and reliability needed for venues and workplaces such as schools, midsize offices and retailers.
  • Wi-Fi 6 for high performance and efficiency.
  • Provides policy enforcement for wireless traffic through Dynamic Segmentation.
  • IoT-ready with a built-in Bluetooth 5 and 802.15.4 radio that supports Zigbee®.
  • Supports up to 256 associated clients per radio.
  • Can be deployed as a cloud-managed Instant AP or controller-based AP.

MPN: R2H23A

Weight 1.25 lbs
Dimensions 6.3 × 6.3 × 1.5 in
