Description

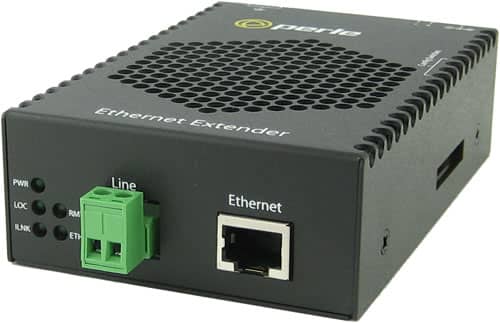

Perle Systems 06003670 eX-1S1110-TB-XT Ethernet Extender

eX-1S1110-TB-XT Ethernet Extender:
1 x 10/100/1000Base-T (RJ-45) Port, 2-Pin Terminal Block Interlink (VDSL2), Industrial Temperature Rated

Ethernet Extension

eX-1S1110-TB-XT

• 1 x 10/100/1000 Mbps Ethernet Port (RJ-45)
• Supports VDSL2 interlink over 2-pin terminal block
• Extends Ethernet over existing copper wiring (CAT5/6/7, Coax, Alarm Circuits, CCTV, RS-232, RS-485, etc.)

Industrial-Grade Performance

• Operating Temperature: -40°F to 167°F (-40°C to 75°C)
• Extended Reach: Up to 10,000 feet (3 km) using twisted pair or coax
• Designed for harsh environments in industrial automation, remote site connectivity, and infrastructure networks

Power Requirements

• Input Voltage: 100-240VAC, 47-63Hz
• Passive Cooling (No Fans)
• Power Consumption: 16W Typical

Environmental Specifications

• Operating Temperature: -40°C to 75°C (-40°F to 167°F)
• Storage Temperature: -40°C to 85°C (-40°F to 185°F)
• Humidity: 5% to 95% non-condensing
• Altitude: Up to 3,048 meters (10,000 ft)

Certifications

• Safety: CAN/CSA-C22.2 No. 62368-1-14
• Emissions: FCC 47 Part 15 Subpart B Class A, EN55032, EN61000-3-2, EN61000-3-3
• Immunity: EN55024, EN61000-4-2 to EN61000-4-11
• RoHS & WEEE Compliant
• TAA & NDAA Compliant

Dimensions & Mounting

• Product Dimensions: 110 x 70 x 25 mm (4.3 x 2.8 x 1 in)
• Shipping Dimensions: 140 x 90 x 50 mm (5.5 x 3.5 x 2 in)
• Shipping Weight: 0.45kg (1 lb)
• Mounting: DIN Rail or Wall-Mount

Included in the Box

• 1 x eX-1S1110-TB-XT Ethernet Extender
• Power Terminal Block
• Installation Guide

Warranty

• Perle Limited Lifetime Warranty

MPN: 06003670
