Description

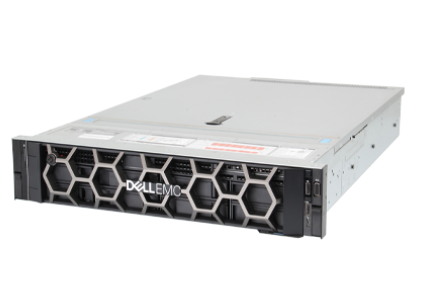

Dell EMC PowerEdge R7515 Rack Server – Custom Configured
- Built on a scalable system – Built on a scalable system architecture. Designed to flexibly meet software-defined storage, virtualization, and data analytics performance needs.
- Virtualize your applications with confidence-The single-socket/2U design of the Dell EMC R7515 Rack Server creates a flexible platform that can handle both traditional and emerging applications.
- Deliver breakthrough performance innovation and density -Software has started to define the data center, which is why a platform design should scale for application performance.
- Software has started to define the data center, which is why a platform design should scale for application performance. The Dell EMC PowerEdge R7515 Rack Server is a storage dense server with GPU configurations for scalable virtualized environments.
Operating System:
- Canonical Ubuntu Server LTS
Citrix Hypervisor
Microsoft Windows Server with Hyper-V
RedHat Enterprise Linux
SUSE Linux Enterprise Server
VMware ESXi
Processor:
- One 2nd or 3rd Generation AMD EPYC Processor with up to 64 cores
Memory:
DIMM Speed:
- Up to 3200 MT/s
Memory Type:
- RDIMM
LDIMM
Memory Module Slots:
- 16 DDR4 LRDIMM slots
Maximum RAM:
- RDIMM 1TB
LRDIMM 2TB
Storage:
Front Bays:
- Up to 8 x 3.5” hot plug SATA/SAS (HDD)
Up to 12 x 3.5” hot plug SAS/SATA (HDD)
Up to 24 x 2.5” hot plug SATA/SAS/NVMe
Storage Controllers:
Internal Controllers:
- PERC HBA330, H330, H730P, H740P
External Controllers: (RAID)
- H840, 12Gbps SAS HBA
Internal Boot:
- Boot Optimized Storage Subsystem (BOSS)
- HWRAID 2 x M.2 SATA SSDs
- Internal Dual SD Module
Security:
- Cryptographically signed firmware
Secure Boot
Secure Erase
Silicon Root of Trust
System Lockdown
TPM 1.2/2.0, TCM 2.0 optional
AMD Secure Memory Encryption (SME)
AMD Secure Encrypted Virtualization (SEV)
Management:
Embedded / At-the-Server:
- iDRAC9
iDRAC RESTful API with Redfish
iDRAC Direct
Quick Sync 2 BLE/wireless module
Consoles:
- OpenManage Enterprise
OpenManage Power Manager
Mobility:
- OpenManage Mobile
Tools:
- Dell RACADM CLI
Dell Repository Manager
Dell System Update
Dell Server Update Utility
Dell Update Catalogs
iDRAC Service Module
IPMI Tool
OpenManage Server Administrator
OpenManage Storage Services
OpenManage Integrations:
- BMC Truesight
Microsoft System Center
RedHat Ansible Modules
VMware vCenter
OpenManage Connections:
- IBM Tivoli Netcool/OMNIbus
IBM Tivoli Network Manager IP Edition
Micro Focus Operations Manager I
Nagios Core
Nagios XI
Power Supplies:
- 495W Platinum
750W Titanium
750W Platinum
1100W Platinum
1600W Platinum
Ports:
Network Options:
- 2 x 1GbE
2 x 10GbE BT
2 x 10GbE SFP+
2 x 25GbE SFP28
Front Ports:
- 1 x Dedicated iDRAC direct micro-USB
1 x USB 2.0
1 x Video
Rear Ports:
- 2 x 1GbE
1 x Dedicated iDRAC network port
1 x Serial
2 x USB 3.0
1 x Video
Slots:
PCIe:
- Up to 4:
2 x Gen3 slot (1 x8; 1 x 16)
2 x Gen4 slot (2 x16)
Bezel:
- Optional LCD bezel or security bezel
Form Factor:
- 2U rack server
Dimensions & Weight:
Height:
- 3.42 inches (86.8 mm)
Width:
- 17.09 inches (434 mm)
Depth:
- 25.48 inches (647.1 mm)
Weight:
- 60.19 lbs. (27.3 kg)
Rack Support:
- ReadyRails sliding rails with optional cable management arm (CMA) for 4-post racks.
(Optional adapter brackets required for threaded hole racks).
MPN: Dell EMC PowerEdge R7515 Rack Server
