Buy Axis 01782-001 Q1700-LE License Plate Camera | Bar None Technologies

$1,218.00

For government, education or quantity discounts on Axis 01782-001 Q1700-LE, please call your Bar None Sales Team at 844-800-8873 or email us at Sales@barnonetech.com



Add to quote request
SKU: 01782-001 Categories: , , Tags: , ,

Description

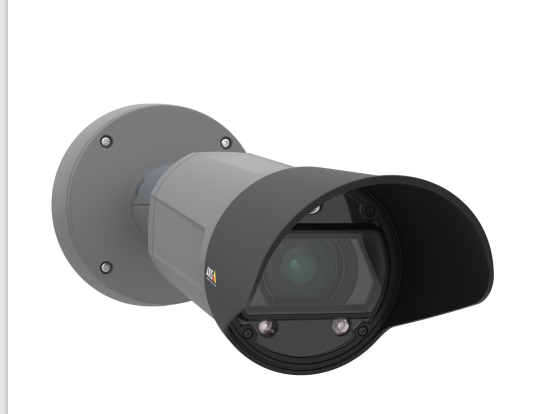

Axis 01782-001 Q1700-LE License Plate Camera



  • Axis Q1700-LE License Plate Camera delivers clear and sharp license plate images from vehicle moving at speeds up to 130 km/h (81 mph) day and night with the aid of built-in license plate capture assistant.
  • The camera is easy to set-up and image settings are automatically adjusted to fit speed, installation height and vehicle distance in a specific traffic scene.
  • A robust design ensures reliable operation extreme weather conditions and in wind forces up to hurricane level.
  • The camera is designed for usage with third-party edge or server-based software to perform license plate recognition and trigger action.
  • Key Features
  • Sharp license plate in HDTV 1080 / 2 MP
  • Optimized range up to 50 m (164 ft)
  • 8x optical zoom
  • Horizontal field of view 16°- 2.3°
  • Designed for third-party software.



License Plate Capture
Detection Range

20-100 m (66 – 328 ft) Day

20 – 50 m (66 – 164 ft) night

Night detection range up to 100 m (328 ft) with optional accessory AXIS T90d20 IR-LED illuminator.
IR illumination  OptimizedIR with power-efficient, long-life 850 nm IR LEDs with adjustable angle of illumination and intensity. Range of reach 40 m (131 ft) in wide field of view and 50 m (164 ft) in full tele view, or more depending on the scene
Vehicle Speed

Up to 130 km/h (81 mph) with optional edge analytics

Up to 250 km/h (155 mph) with server-based analytics.
Coverage

Single lane with optional edge analytics

Two lanes with server-based analytics
Installation

Mounting height: up to 10 m (33 ft)

Distance from road: up to 10 (33 ft)

Camera detects tilt and roll angle automatically.

Built-in license plate capture assistant optimizes video settings based on mounting height, distance to vehicle, and expected vehicle speed.

Features Axis Q1700-LE License Plate Camera

Camera

























System on Chip (SoC)





Video

























Audio









Network
  • Model and MPN
    • Axis Q1700-LE
    • Axis 01782-001
  • Image Sensor
    • 1 /2.8″ progressive scan RGB CMOS
  • Lens
    • 18-137 mm, F2.9-4.0
    • Horizontal field of view 16°-2.3°
    • Vertical field of view 9.6°-1.3°
    • Installation focus, auto-iris, automatic daylight
    • Thread for 62 mm filters, max filter thickness: 5mm
  • Day and Night
    • Automatically removable infrared-cut filter in day mode,
    • and infrared-pass filter 720 nm in night mode.
  • Minimum Illumination (with Lightfinder)
    • Color 0.16 Lux at 50 IRE F1.4
    • B/W 0.03 Lux at 50 IRE F1.4
    • 0 lux with IR illumination on
  • Shutter Speed
    • 1/66500 s to 1 s
  • Model
    • ARTPEC-6
  • Memory
    • 1024 MB RAM, 512 MB Flash
  • Video Compression
    • H.264 (MPEG-4 Part 10/AVC) Baseline, Main and High Profiles
    • Motion JPEG
  • Resolution
    • 1920 x 1080 HDTV 1080p to 160 x 120
    • Maximum pixel density with 8x optical zoom:
      • 25m (82 ft): 1912 px/mm
      • 50 m (164 ft): 956 px/mm
      • 250 m (820 ft): 191 px/mm
  • Frame Rate
    • With WDR: 25/30 fps (50/60 Hz) in all resolutions
    • Without WDR: Up to 50/60 fps (50/60Hz) in all resolutions
  • Video Streaming
    • Multiple, individually configurable streams in H.264, H.265
    • Motion JPEG
    • Axis Zipstream technology in H.264,
    • Controllable frame rate and bandwidth
    • VBR/ABR/MBR H.264
  • Image Settings
    • Saturation, contrast, brightness, sharpness, Forensic WDR:
    • Up to 120 dB depending on scene, defogging white balance, day/night.
    • threshold, exposure mode, exposure zones, compression, mirroring of images,
    • electronic image stabilization barrel distortion correction,
    • text and image over-lay auto privacy masks, Rotation: auto 0°, 180°
    • Scene Profiles: License Plate, forensic, vivid, traffic overview

Pan/Tilt/Zoom

    • 8x optical zoom, preset positions.
  • Audio Streaming
    • Audio in, simplex,
    • two-way audio via edge-to-edge technology
  • Audio Encoding
    • AAC-LC 8/16/32/48 kHz, G711 PCM 8 kHz, G.726
    • ADPCM 8 kHz, opus 8/16/48 kHz,
    • Configurable bit rate
  • Audio Input/Output
    • Automatic gain control
    • External microphone input, line input, digital input
    • with ring power, balanced microphone, balanced input,
    • Network speaker pairing.
  • Network Protocols
    • IPv4, IPv6, USGv6, ICMPv4/ICMPv6, HTTP, HTTP/2 TLS,
    • QoS Layer 3 DiffServ, FTP, SFTP, CIFS/SMB, SMTP, (Bonjour)
    • UPnP, SNMP, v1/v2c/v3 (MIB-II), DNS/DNSv6, DDNS, NTP, NTS
    • RTSP, RTP, SRTP/RTSPS, TCP, UDP, IGMPv1, v2/v3, RTCP ICMP.
    • DHCPv4/v6, ARP, SSH, LLDP, CDP, MQTT v3.1.1., Syslog, Link-Local
    • address (ZeroConf)
  • Network Security
    • Password protection
    • IP address filtering,
    • HTTPS encryption
    • IEEE 802,1x (EAP-TLS)
    • Network access control
    • Digest authentication
    • User access log
    • Centralized certificate management
    • Signed firmware,
    • Brute force delay protection
Casing
  • IP66/IP67-, NEMA 4X-, 1K10 impact resistant aluminum,
  • enclosure with integrated dehumidifying membrane,
  • IKOB impact-resistant glass front window,
  • Weather with black anti-glare coating,
  • Wind survivability 60 m/s (134 mph)
  • Color: dark grey NCS S 5502-B
  • Weather Shield: Black
Power
  • Power over Ethernet IEEE 802.3af/802.3at
  • Type 1 Class 3
  • Typical 7.7 W, max 12.95 W
  • 20-28 V DC, typical 7.8 W, max 13.5 W
  • 20-24 V AC Typical: 12.4 VA, max 20 V A
Connectors
  • Shielded RJ45, 10BASE-T/100BASE-TX / 1000BASE-TX PoE.
  • IDC punchout connector
  • DC power connector
  • Terminal block for 2 supervised inputs/ digital outputs
    • (12 V DC output, max load 50 mA)
  • 3.5 mm mic/line in
Dimension
  • Length: 439 mm (17.3 in)
  • 0 147 mm (5.8 in)
Weight
  • 2.4 kg (5.3 lbs)
Temperatures
  • Operating Temperature
    • -40°C to 60°C (-0°F to 140°F)
  • Maximum Temperature According to NEMA TS2 (2.2.7):
    • 74°C (165°F)
  • Humidity
    • 10-100% RH (condensing)
  • Storage Conditions
    • -40 °C to 65 °C (-40 °F to 149 °F)
    • 5-95% RH (Non-condensing)
Optional Accessories
  • AXIS T90D20 IR-LED illuminator –
    • for nighttime capture range at up to 100 m (328 ft)
  • AXIS T8604 Media Converter Switch
  • AXIS T91A47 Pole Mount
  • AXIS T94P01B Corner Bracket
Included Accessories.
  • Installation guide
  • Windows decoder (1-user license)
  • Connector kit
  • Reistorx L-key
  • RJ45 patch cable
Languages
  • English, German, French,
  • Spanish, Russian, Simplified Chinese,
  • Japanese, Korean, Portuguese,
  • Traditional Chinese
Video Management


  • Axis Companion,
  • Axis Camera Station
  • Video Management Software from
    • Axis Application Development Partners
Warranty
  • 5- Year Warranty

MPN: 01782-001

Model: Q1700-LE
