Description

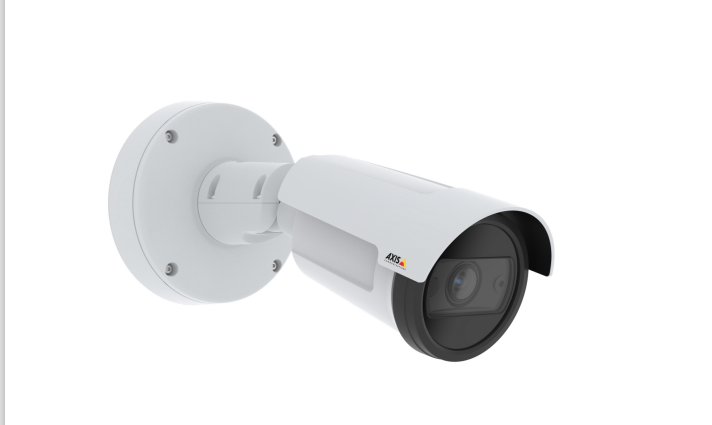

Axis 02235-001 P1455-LE-3 License Plate Verifier Kit –

Network Surveillance Camera



  • Axis 02235-001 P1455-LE-3 includes an HDTV 1080 fixed bullet camera and comes with Axis License Plate Verifier preinstalled.
  • Axis 02235-001 P1455-LE-3 includes freeflow mode, it’s ideal for use in slow-speed traffic, such as in city centers, gated communities, and campuses.
  • The compact and robust IK10-rated camera includes shock detection for installation in all environments.
  • Featuring a 29mm telephoto lens, this cost-effective solution can read license plates from 7 to 20 meters (20-65 feet).
  • It includes Axis image enhancement technologies as well as OptimizedIR to ensure sharp images for license plate reading 24/7.
  • It offers tight integration with Axis Camera Station
  • Key Features
  • Ideal for slow speed traffic
  • Read license plates from 7-20 m (20-65 ft)
  • Proven for tough weather conditions.
  • OptimizedIR for recognition in darkness
  • Integration with Axis Camera Station





License Plate Verifier Kit- Application
Compute Platform
  • Edge
Licenses
  • Axis License Plate Verifier license included.
Configuration
  • Web Configuration included.
Settings
  • Define area of interest in scene
  • Allow and blocklist logic.
  • Barrier mode: Open to all, open to allowlisted, open to all but blocklisted
  • Minimum width: 130 pixels for one-row license plates; 70 pixels for two-row license plates
  • FIFO event log entries including thumbnail image of license plate. Up to 100 entries on camera storage. Up to 100,000 entries on Axis Surveillance Cards
  • Configurable retention time of stored events
Detection Range
  • 7.0 to 20m (20 to 65 ft)
Vehicle Speed
  • Up to 70 km/h (45 mph)
Detection Time
  • Less than 1 second

Scenarios
Typical Applications
  • License plate recognition in slow speed traffic
    • In Freeflow, the application can detect and read license plates in slow speed traffic on larger access roads, city centers and enclosed areas like campuses, ports or airports. This allows for LPR-forensic search and LPR triggered events in a VMS such as ACS.
  • Vehicle access control
    • In Access Control, the application monitors entrances and exits of gated areas such as parking areas. The application verifies detected license plates against an allowlist or a blocklist for granting or denying access to an area. Maximum 10,000 license plates in each list.
    • For a scenario where greater functionality and flexibility are required, use AXIS A1001 Network Door Controller. AXIS A1001 with AXIS Entry Manager software supports access rules including schedules and a more detailed event log. Multiple partner software that supports a great number of credentials and features available.

System Integration
Application Programming Interface
  • Open API for software integration
Event Streaming
  • Integrates with camera event management system to enable event streaming to management software and camera actions such as I/O Relay Modules

General
Language
  • English



Features

Axis 02235-001 P1455-LE-3 License Plate Verifier Kit

Network Surveillance Camera

Camera

























System on Chip (SoC)





Video

























Audio









Network
  • Model and MPN
    • Axis P1455-LE-3
    • Axis 02235-001
  • Image Sensor
    • 1 /2.8″ progressive scan RGB CMOS
  • Lens
    • Varifocal, 10.9-29 mm, f1.7-1-7
    • Horizontal field of view 29°-11°
    • Vertical field of view 17°-6.5°
    • Varifocal, Remote focus and zoom, P-Iris control, IR corrected.
  • Day and Night
    • Automatically removable infrared-cut filter
  • Minimum Illumination (with Lightfinder)
    • Color 0.07 Lux at 50 IRE F1.7
    • B/W 0.01 Lux at 50 IRE F1.7
    • 0 lux with IR illumination on
  • Shutter Speed
    • 1/66500 s to 2 s
  • Model
    • ARTPEC-7
  • Memory
    • 1024 MB RAM, 512 MB Flash
  • Video Compression
    • H.264 (MPEG-4 Part 10/AVC) Baseline, Main and High Profiles
    • H.265 (MPEG-H Part 2/HEVC) Main Profiles
    • Motion JPEG
  • Resolution
    • 1920 x 1080 to 160 x 90
  • Frame Rate
    • With Forensic WDR: Up to 25/30 (50/60 Hz) in all resolutions
    • No WDR Up to 50/60 fps (50/60 Hz) in all resolutions
  • Video Streaming
    • Multiple, individually configurable streams in H.264, H.265
    • Motion JPEG
    • Axis Zipstream technology in H.264, and 265
    • Controllable frame rate and bandwidth
    • VBR/ABR/MBR H.264/H265
    • Low latency mode
    • Video streaming indicator
  • Multi-view streaming
    • Up to 8 individually cropped out of view areas.
  • Image Settings
    • Saturation, contrast, color, brightness, sharpness, Forensic WDR:
    • Up to 120 dB depending on scene, white balance, day/night threshold,
    • exposure mode, exposure zones, defogging compression, orientation:
    • auto 0°, 90°, 180°, 270° including Corridor Format, mirroring of images,
    • dynamic text and image overlay, privacy masks, motion-adaptive exposure,
    • barrel distortion correction, Scene profiles, vivid, traffic overview
  • Pan/Tilt/Zoom
    • Digital PTZ, digital zoom
  • Audio Streaming
    • Audio in, simplex, two-way audio via edge-to-edge technology
  • Audio Encoding
    • 24bit LPCM, AAC-LC 8/16/32/48 kHz, G711 PCM 8 kHz, G.726
    • ADPCM 8 kHz, opus 8/16/48 kHz,
    • Configurable bit rate
  • Audio Input/Output
    • External microphone input or line input, digital audio input,
    • Network speaker pairing.
  • Network Protocols
    • IPv4, IPv6, USGv6, ICMPv4/ICMPv6, HTTP, HTTP/2 TLS,
    • QoS Layer 3 DiffServ, FTP, SFTP, CIFS/SMB, SMTP, (Bonjour)
    • UPnP, SNMP, v1/v2c/v3 (MIB-II), DNS/DNSv6, DDNS, NTP, NTS
    • RTSP, RTP, SRTP/RTSPS, TCP, UDP, IGMPv1, v2/v3, RTCP ICMP.
    • DHCPv4/v6, ARP, SSH, LLDP, CDP, MQTT v3.1.1., Syslog, Link-Local
    • address (ZeroConf)
  • Network Security
    • Password protection
    •  IP address filtering,
    • HTTPS encryption
    • IEEE 802,1x (EAP-TLS)
    • Network access control
    • Digest authentication
    • User access log
    • Centralized certificate management
    • Brute force delay protection
    • Signed firmware secure booth.
    • Signed video.
    • Axis Edge Vault,
    • Axis Device ID
Casing
  • IP66/IP67-, NEMA 4X-, and 1K10-Rated casing.
  • Polycarbonate blend and aluminum
  • Color: white NCS S 1002-B
Power
  • Power over Ethernet IEEE 802.3af/802.3at
  • Type 1 Class 3
  • Typical: 7.7 W, max 12.95 W
Connectors
  • Shielded RJ45, 10BASE-T/100BASE-TX / 1000BASE-T.
  • 3.5 mm mic/line in Terminal block for 1supervised alarm input,
  • and 1 output (12 V DC output, max load 25mA), DC input
Dimension
  • ø132 x 264 mm (ø5.2 x 10.4 in)
Weight
  • With Weather Shield
    • 1.2 kg (2.65 lbs)
Temperatures
  • Operating Temperature
    • -40°C to 60°C (-0°F to 140°F)
  • Maximum Temperature According to NEMA TS2 (2.2.7):
    • 74°C (165°F)
  • Humidity
    • 10-100% RH (condensing)
  • Storage Conditions
    • -40 °C to 65 °C (-40 °F to 149 °F)
    • 5-95% RH (Non-condensing)
Optional Accessories
  • AXIS T94F01M J-Box/Gang Box Plate
  • AXIS T91A47 Pole Mount
  • AXIS T94B01P Corner Bracket
  • AXIS T94F01P Conduit Back Box
  • AXIS Weather Shield K
  • AXIS PoE Midspans
Included accessories.
  • Installation guide
  • Windows decoder (1-user license)
  • Drill hole template
  • Connector kit
  • Mounting brackets
  • Torx L-key
  • Axis Weather Shield L
Languages
  • English, German, French,
  • Spanish, Russian, Simplified Chinese,
  • Japanese, Korean, Portuguese,
  • Traditional Chinese
Video Management


  • Axis Companion,
  • Axis Camera Station
  • Video Management Software from
    • Axis Application Development Partners
Warranty
  • 5- Year Warranty

MPN: 02235-001

Model: P1455-LE-3 (29mm)
