Shop Cisco C9200L-48PXG-4X-E Catalyst 48 Port 12xmGig 36x1G 4X10G PoE+ Network Essentials

$8,440.00

For government, education or quantity discounts on Cisco C9200L-48PXG-4X-E Switch please contact your BNT Sales Team via email at sales@barnonetech.com or by phone at 844-800-8873.

Add to quote request
SKU: C9200L-48PXG-4X-E Categories: , , Tags: , ,

Description

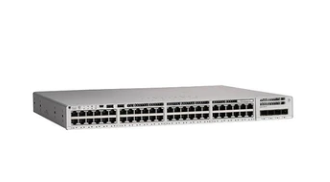

Cisco C9200L-48PXG-4X-E Catalyst 48 Port 12xmGig 36x1G 4X10G PoE+ Network Essentials

Product Description Cisco Catalyst 9200L – Network Essentials- switch – 48 ports – managed – rack-mountable
Device Type Switch – 48 ports – L3 – managed – stackable
Enclosure Type Rack-mountable
Subtype Gigabit Ethernet
Ports 12 x 100/1000/2.5G/5G/10GBase-T + 36 x 10/100/1000 (PoE+) + 4 x 10 Gigabit Ethernet
Power Over Ethernet (PoE) PoE+
PoE Budget 740 W
Performance Stacking bandwidth: 80 Gbps ¦ Switching capacity: 392 Gbps ¦ Switching capacity with stacking: 472 Gbps ¦ Forwarding rate: 291.66 Mpps
Capacity Virtual networks: 1 ¦ IPv4 routes: 11000 ¦ IPv4 routing table entries: 3000 ¦ IPv6 routing table entries: 1500 ¦ Multicast scale: 1000 ¦ ACL scale entries: 1500 ¦ FNF entries: 16000 ¦ VLANs supported: 1024 ¦ Switched virtual interfaces (SVIs): 512 ¦ QoS hardware queues per port: 8 ¦ Packet buffer size: 6 MB
MAC Address Table Size 16000 entries
Jumbo Frame Support 9198 bytes
Routing Protocol OSPF, RIP, IS-IS, RIP-1, RIP-2, EIGRP, HSRP, VRRP, PIM-SM, EIGRP for IPv6, OSPFv3, PIM-SSM, MSDP, policy-based routing (PBR), RIPng, MSTP
Remote Management Protocol SNMP 1, RMON 1, RMON 2, SNMP 3, SNMP 2c, CLI, NETCONF, RESTCONF
Features ARP support, Spanning Tree Protocol (STP) support, Quality of Service (QoS), Rapid Per-VLAN Spanning Tree Plus (PVRST+), Shaped Round Robin (SRR), PXE support, Remote Switch Port Analyzer (RSPAN), Energy Efficient Ethernet, Management Information Base (MIB), Virtual Routing and Forwarding (VRF), Class of Service (CoS), Flexible NetFlow (FNF), DiffServ Code Point (DSCP) support, MACsec support, Control plane protection (CoPP), Virtual Extensible LAN (VXLAN), Location ID Separation Protocol (LISP), Switched Port Analyzer (SPAN), Security Group Tag (SGT) caching, Embedded Event Manager (EEM), Protocol Independent Multicast (PIM), First Hop Security (FHS), PVLAN support, Committed Information Rate (CIR), Cisco StackWise-80 technology
Compliant Standards IEEE 802.3, IEEE 802.3u, IEEE 802.3z, IEEE 802.1D, IEEE 802.1Q, IEEE 802.3ab, IEEE 802.1p, IEEE 802.3af, IEEE 802.3x, IEEE 802.3ad (LACP), IEEE 802.1w, IEEE 802.1x, IEEE 802.1s, IEEE 802.1ab (LLDP), IEEE 802.3at, IEEE 802.3bz
Power AC 100-240 V (50 – 60 Hz)
Power Redundancy Optional
Dimensions (WxDxH) 17.5 in x 13.8 in x 1.7 in
Weight 12.59 lbs
Manufacturer Warranty Limited lifetime warranty
  • The Cisco Catalyst 9200 Series switch can help customers simplify complexity, optimize IT, and reduce operational costs by leveraging intelligence, automation and human expertise.
  • The Cisco C9200L switch provides security features that protect the integrity of the hardware as well as the software and all data that flows through the switch. It provides resiliency that keeps your business up and running seamlessly.
  • The C9200L model has 12 mGig ports, 36 ports 1G PoE+ with 4x 10G SFP+ fixed uplinks. Cisco DNA Advantage subscription licensing is required at time of purchase

MPN: C9200L-48PXG-4X-E

Additional information

Weight 13 lbs
Dimensions 17.5 × 14 × 2 in
