Description

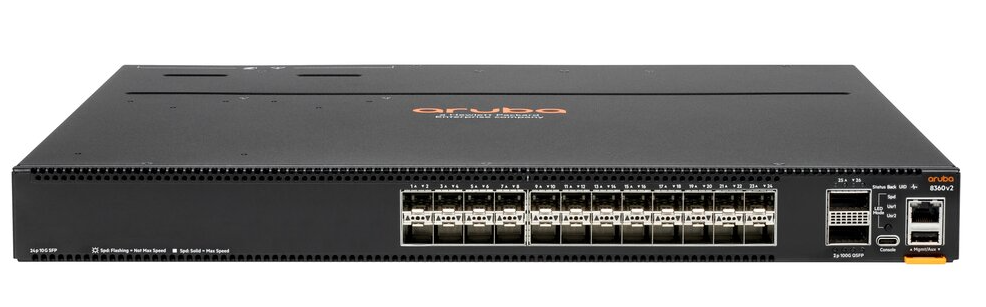

Aruba JL711C CX 8360-24XF2C V2 24 Ports Managed Rack Mountable Switch
| Product Description | HPE Aruba CX 8360-24XF2C v2 – switch – 24 ports – managed – rack-mountable |
| Device Type | Switch – 24 ports – L3 – managed |
| Enclosure Type | Back to front airflow rack-mountable 1U |
| Subtype | 10 Gigabit Ethernet |
| Ports | 24 x 1 Gigabit / 10 Gigabit SFP / SFP+ + 2 x 40/100 Gigabit QSFP+ / QSFP28 |
| Performance | Switching capacity: 880 Gbps |
| Capacity | VLANs supported: 4094 ¦ IGMP groups: 7000 ¦ MLD groups: 7000 ¦ IPv4 routes (Multicast): 7000 ¦ IPv6 routes (Multicast): 7000 ¦ IPv4 ACL entries (egress): 8192 ¦ IPv6 ACL entries (egress): 2048 ¦ MAC addresses: 212992 ¦ Host table entries (IPv4): 145780 ¦ Host table entries (IPv6): 145780 ¦ IPv4 routes (Unicast): 606977 ¦ IPv6 routes (Unicast): 630784 ¦ IPv4 ACL entries (ingress): 65536 ¦ IPv6 ACL entries (ingress): 16384 ¦ MAC ACL entries (egress): 8192 ¦ MAC ACL entries (ingress): 65536 |
| Jumbo Frame Support | 9KB |
| Routing Protocol | OSPF, BGP-4, BGP, IGMP, VRRP, PIM-SM, static IPv4 routing, static IPv6 routing, MLD, Bidirectional Forwarding Detection (BFD) |
| Remote Management Protocol | SNMP, RMON, TFTP, CLI, SFTP, NTP, DHCP |
| Features | ARP support, sFlow, Rapid Spanning Tree Protocol (RSTP) support, Multiple Spanning Tree Protocol (MSTP) support, Quality of Service (QoS), Data Center Bridging (DCB), Virtual Routing and Forwarding (VRF), packet storm protection, Loopback, Ethernet Ring Protection Switching (ERPS), Explicit Congestion Notification (ECN), RDMA over Converged Ethernet (RoCE) v2, Virtual Switch Extension (VSX), Rapid PVST+ (RPVST+), Unidirectional Link Detection (UDLD), VXLAN Distributed Anycast Gateway, VXLAN ARP/ND Suppression, REST API interface, job scheduler framework, dual flash Images, IP Directed Broadcast |
| Compliant Standards | IEEE 802.1D, IEEE 802.3ad (LACP), IEEE 802.1w, IEEE 802.1s, IEEE 802.1ab (LLDP) |
| Power | AC 100-127/200-240 V (50/60 Hz) |
| Power Redundancy | Yes |
| Dimensions (WxDxH) | 17.4 in x 16 in x 1.7 in |
| Weight | 17.79 lbs |
| Manufacturer Warranty | Limited lifetime warranty |
- Aruba CX 8360-24XF2C v2 Switch L3 Managed – 24 x 1 Gigabit / 10 Gigabit SFP / SFP+ + 2 x 40/100 Gigabit QSFP+ / QSFP28 Back to Front Airflow Rack Mountable
MPN: JL711C
