Description

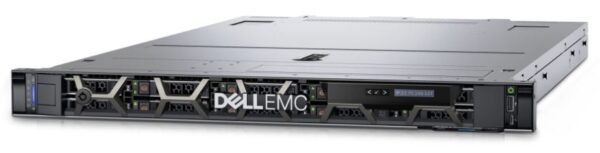

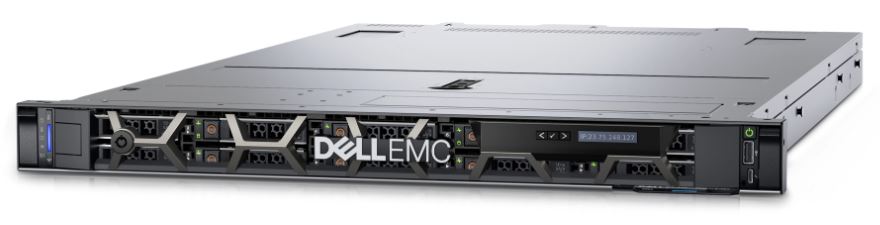

Dell PowerEdge R650 Rack Server
The Dell EMC PowerEdge R650 server is part of Dell’s 15th generation line of servers and supports Intel’s new Xeon Scalable Family of processors, which offer a 27% increase in processing cores. It supports an impressive 1536GB of memory and up to 58TB of internal storage that’s a perfect fit for dense scale-out computing. Optional NVDIMMs and NVMe drives reduce latency and boost application performance. Data is kept safe with built-in cyber resilient security features, including System Erase technology, which enables administrators to securely wipe all data from the server’s components quickly and efficiently. Dell’s EMC Open Manage portfolio automates the majority of routine management tasks and begins working the moment the network and power cables are connected.
Processor: Up to two 3rd Generation Intel Xeon Scalable processors with up to 24 cores per processor
Chipset: Intel C620A chipset
Memory: DIMM Speed Up to 3200 MT/s
Memory Module Slots: 32 DDR4 DIMM slots
Maximum RAM:
RDIMM 2 TB
LRDIMM 4TB
NVDIMM 128 GB
Intel Persistent Memory 200 series (BPS) 8TB
Storage
Front Bays
Up to 10 x 2.5-inch SAS/SATA/NVMe (HDD/SSD) max 153 TB
Up to 8 x 2.5-inch SAS/SATA/NVMe (HDD/SSD) max 122.8 TB
Up to 4 x 3.5-inch SAS/SATA (HDD/SSD) max 64 TB
Rear bays
Up to 2 x 2.5-inch SAS/SATA/NVMe (HDD/SSD) max 30.7 TB
Storage Controllers
Internal Controllers: PERC H745, H345, HBA355I, H755, H755N
External Controllers: PERC H840, HBA355E
Management
Embedded / At-the-Server
iDRAC9
iDRAC Service Module
iDRAC Direct
Quick Sync 2 wireless module
Consoles
OpenManage Enterprise
OpenManage Power Manager plugin
OpenManage SupportAssist plugin
OpenManage Update Manager plugin
Mobility
OpenManage Mobile
Tools
iDRAC RESTful API with Redfish
IPMI
RACADM CLI
System Update Utility
Update Catalogs
OpenManage Integrations
BMC Truesight
Microsoft System Center
Red Hat Ansible Modules
VMware vCenter and vRealize Operations Manager
OpenManage connections
IBM Tivoli Netcool/OMNIbus
IBM Tivoli Network Manager IP Edition
Micro Focus Operations Manager
Nagios Core
Nagios XI
Power Supplies
800 W Platinum AC/240 V Mixed Mode
1100 W Titanium AC/240 V Mixed Mode
1400 W Platinum AC/240 V Mixed Mode
1100 W DC -48 – 60 V
Hot plug power supplies with full redundancy option
Slots
Up to 3 x PCIe Gen4 low profile slots (all x16 except one x8 slot with SNAPI I/O option) or 2 x PCIe (Gen4) full height slots
Dimensions & Weight
Height
42.8 mm (1.68 inches)
Width
482 mm (18.97 inches)
Depth
809 mm (31.85 inches) – without bezel
822.84 mm (32.39 inches) – with bezel
Weight
21.2 kg (46.7 lbs)
