Description

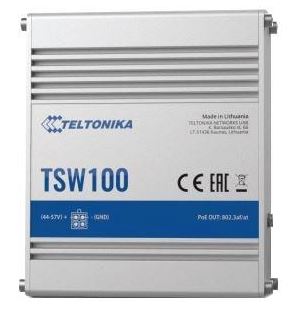

Teltonika TSW100000000 Industrial Unmanaged PoE+ Switch
- TSW100 is the first industrial unmanaged switch from Teltonika Networks.
- Equipped with five Gigabit Ethernet ports, four of which support IEEE802.3af and IEEE802.3at Power-over-Ethernet standards (PoE).
- Classified as power source equipment (PSE), it enables centralization of the power supply, providing up to 30 watts per port and reducing the effort for installing power.
- It has 10/100/1000 Mbps Ethernet ports for an economical high-bandwidth solution.
- Ideal for professional high bandwidth applications to provide both: reliable data connection and power supply.
| ETHERNET | |
| LAN | 5 x LAN ports, 10/100/1000 Mbps, compliance with IEEE 802.3, IEEE 802.3u, 802.3az standards, supports auto MDI/MDIX crossover |
| POE | |
| PoE ports | Port 1- 4 |
| PoE standards | 802.3af and 802.3at |
| PoE Max Power per Port (at PSE) | 30 W |
| Total PoE Power Budget (at PSE) | 120 W |
| PERFORMANCE SPECIFICATIONS | |
| Bandwidth (Non-blocking) | 10 Gbps |
| Packet buffer | 128 KB |
| MAC address table size | 2K entries |
| POWER | |
| Connector | 4 pin industrial DC power socket |
| Input voltage range | 7-57 VDC |
| Input voltage range for PoE | 44-57 VDC |
| Power consumption (idle/max no PoE/max) | 2 W/9 W/129 W |
| PHYSICAL INTERFACES (PORTS, LEDS) | |
| Ethernet | 5 x RJ45 ports, 10/100/1000 Mbps |
| Status LED’s | 1 x Power LED, 10 x LAN status LED’s |
| Power | 1 x 4 pin DC connector |
| Ground | 1 x Grounding screw |
| PHYSICAL SPECIFICATION | |
| Casing material | Full aluminum housing |
| Dimensions (W x H x D) | 115 x 32 x 95 mm |
| Weight | 350 g |
| Mounting | DIN rail or wall mounting (additional kit needed), flat surface placement |
| OPERATING ENVIRONMENT | |
| Operating temperature | -40 °C to +75 °C |
| Operating humidity | 10 % to 90 % non condensing |
MPN: TSW100000000
