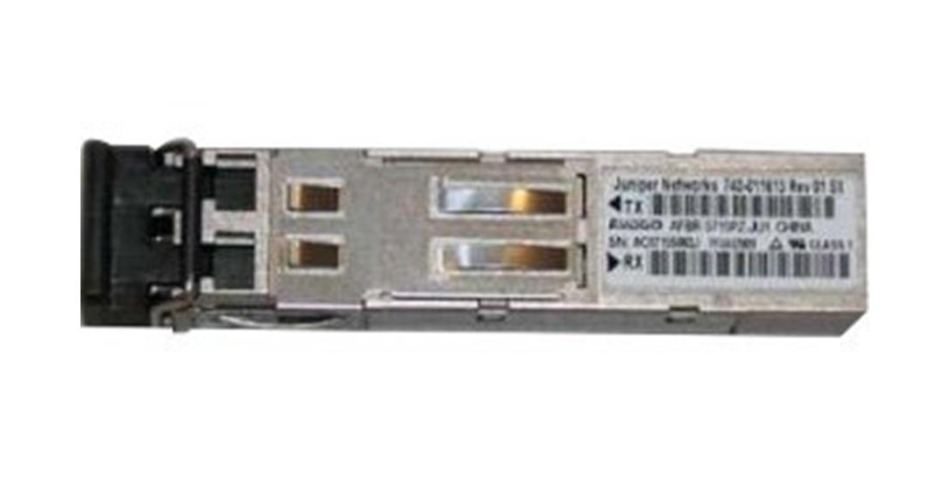

Juniper Networks QFX-SFP-1GE-LX Optical Transceiver Module

• 1GE Connectivity for Data Center:
  • Featured with 0.6W low-power, high-density and high-speed, the SFP+ transceiver offers a popular way to help you quickly ramp up to 10G transmission.
• Tested in Host Devices for Proven Interoperability:
  • Every unit is quality tested for compatibility in the targeted switch environment, which guarantees flawless operations.
• Comprehensive Testing Increases Reliability:
  • Qualified through a rigorous process with advanced equipment to ensure you get the high quality and reliable optics.

 Specifications:

• MPN: QFX-SFP-1GE-LX
• Brand: Juniper
• Product Line: Juniper Networks
• Transceiver Type: SFP
• Connector: Duplex LC
• Product Type: Optical Transceiver
• Breakout Capable: No
• Monitoring Available: Yes (can measure received optical, and display in CLI)
•  Digital Optical Monitoring: Yes (full support for SFF-8636)

Standards compliance 1000 BASE-LX:

• (Ethernet/OTN Standard, for e.g., 100GBASE-LR4) 1000BASE LX
  • 1000BASE-LX
• MSA compliance (SFF, for e.g., SFF-8665)
  • INF-8074i
• Optic Type (Commercial Vs Service Provider Grade)
  • Tx Power
    Rx Power
    Tx Bias Current
    Case Temperature
    Power Supply Voltage
• NEBs (Yes or No)
  • Yes
• Signaling rate, each lane
  • 1.25 Gbps
• Transmitter wavelengths (range)
  • 1270 nm to 1355 nm
• Receive lane wavelengths (range)
  • 1270 nm to 1355 nm
• Transmitter output power, each lane (minimum)
  • -9.5 dBm
• Transmitter output power, each lane (maximum)
  • -3 dBm
• Receiver input power, each lane (minimum)
  • -19 dBm
• Receiver input power, each lane (maximum)
  • -3 dBm
• Stressed receiver sensitivity (OMA) each lane (maximum)
  • -14.4 dBm
• Cable type:
  • SMF (Single Mode Optical Fiber)
  • MMF (Multimode Fiber)
  • MMF (Multimode Fiber)
• Core Size / Cladding:
  • MMF (Multimode Fiber) 62.5 µm (Refer the note below)
  • MMF (Multimode Fiber) 50 µm (Refer the note below)
  • An offset-launch mode-conditioning patch cord is required for MMF operation of 1000BASE-LX.
    o If the cabling is 62.5m MMF then the MMF used in the construction of the mode conditioner should be of type 62.5m MMF.
    o If the cabling is 50m MMF, then the MMF used in the construction of the mode conditioner should be of type 50m MMF.
• Effective modal bandwidth:
  • 62.5 µm
    • MMF 500 MHz x km

• • 50 µm
    • 500 MHz x km
• Distance:
  • SMF (Single Mode Optical Fiber)
    • 10km
  • 62.5 µm MMF (Multimode Fiber)
    • 550 m
  • 50 um MMF (Multimode Fiber
    • 550 m
• Maximum Power Consumption (W)
  • SMF (Single Mode Optical) 1W
• Operating Temperature (range)
  • –5° C to 70° C
• Storage Temperature:
  • –40° C to 85° C

Supported Platforms:

Routing:

• ACX Series:
  • ACX500, ACX710, ACX1000, ACX1100,
  • ACX2000, ACX2100, ACX2200, ACX4000,
  • ACX5000, ACX7024,
• MX Series:
  • MX5, MX10, MX40, MX80, MX104, MX150,
• PTX Series:
  • PTX10008, PTX10016
•  SSR Series:
  • SSR120, SSR130

SDN and Orchestration:

• • NFX150, NFX250, NFX350

Switching:

• EX Series:
  • EX2200, EX2200-C, EX2300, EX2300-C, EX2300 Multigigabit,
  • EX3300, EX3400, EX4100, EX4100-F, EX4200, EX4300, EX4400,
  • EX4400 Multigigabit, EX4400-48F, EX4500, EX4550
  • EX4600, EX4650-48Y, EX6200, EX8208, EX8216, EX9204
  • EX9208, EX9214
• SRX Series:
  • SRX210, SRX220, SRX240, SRX300, SRX320
  • SRX340, SRX345, SRX380, SRX550, SRX550 HM
  • SRX650, SRX1400, SRX1500, SRX3400, SRX3600
  • SRX4100, SRX4200, SRX4600, SRX5400, SRX5600, SRX5800
• QFX Series:
  • QFX3500, QFX5100, QFX5110,
  • QFX5120-48Y, QFX5210-64C, QFX520032C
  • QFX10002, QFX1008, QFX10016

Supported Interface Modules:

• I/O Cards (IOCs)

• SRX-10C-16GE-SFP – Port module with 16 Gigabit Ethernet SFP ports
  • SRX5600 – Juno OS 12.1 x47 D10
  • SRX5800 – Juno OS 12.1×47 D10
• SRX1K- SYSIO-GE
  • 1 Gigabit Ethernet SYSIOC
    • SRX1400
• SRX1K-SYSIO-XGE
  • 10 Gigabit Ethernet SYSIOC
    • SRX1400
• SRX3K-16GE-SFP
  • 16 Port Ethernet SFP IOC for SRX3400, SRX3600, SRX1400
    • SRX1400 Juno OS 10.4R1
    • SRX3400 Juno OS 9.4R1
    • SRX3600 Juno OS 9.4R1
• SRX5K-40GE-SFP
  • I/O Card with 40 Gigabit Ethernet SFP Ports
    • SRX5600 Juno OS 12.1 x 47 D10
    • SRX5800 Juno OS 12.1 x 47 D10

• Line Cards:

• EX9200 40F
  • A line card 40.1 Gigabit Ethernet Ports
    • EX9204 – Juno OS 12.3R2
    • EX9208 – Juno OS 12.3R2
    • EX9214 – Juno OS 12.3R2
• EX9200 40F-M
  • A line card 40.1 Gigabit Ethernet Ports with Media Access Control Security
    • EX9204 – Juno OS 12.3R2
    • EX9208 – Juno OS 12.3R2
    • EX9214 – Juno OS 12.3R2
• QFX10000-60S-6Q
  • QFX10000 60-port 1/10G SFP+ line card with 6 40G QSFP+ / 2 100G QSFP28 Ports
    • PTX10008- Juno OS 20.2R1
    • PTX10016- Juno OS 20.2R1
  • QFX Series
    • QFX10008- Juno OS 17.1R1
    • QFX10016- Juno OS 17.1R1

• Routing Engines:

• EX-XRE200
  • •  EX8208 Juno OS 11.3R1
    • EX8216 Juno OS 11.3R1
  • EX8200 Virtual Chassis External Routing Engine 200 includes dual AC/DC Power
  • Supplies, Dual fans 2 160GB HDD, one 4 port 10/100Base-T RJ-45 IO card

• Services Processing Cards (SPCs) Gigabit Ethernet
  • SRX5K-SPC-2-10-40 (SPC with two SPUs)
    • SRX5600- Juno OS 12.1 1×47 D10
    • SRX5800 Juno OS 12.1 1×47 D10
  • SRX5K-SPC-4-15 320 (SPC with two SPUs)
    • SRX5400- Juno OS 12.1 x 1×47 D10
    • SRX5600- Juno OS 12.1 x 1×47 D10
    • SRX5800-Juno OS 12.1 x 1×47 D10

Uplinks Modules:

• EX-UM-4X4SFP
  • EX4300- 4-Port 10G SFP+/4-Port 1G SFP Uplink Module
    • EX4300- Juno OS 13.2S x50 D10
• EX-UM 8X8SFP
  • EX4300-8-Port 10G SFP+ / 8-Port 1G SFP Uplink Module
• EX4400-EM-4S
  • 4x10G SFP+ Extension Module for EX4400 Series of Switches
    • EX4400 Juno OS 21.1R1
    • EX4400 Multigigabit -Juno OS 21.1R1
    • EX440-48F – Juno OS 21.1R1

MPN: QFX-SFP-1GE-LX
