Product Description |

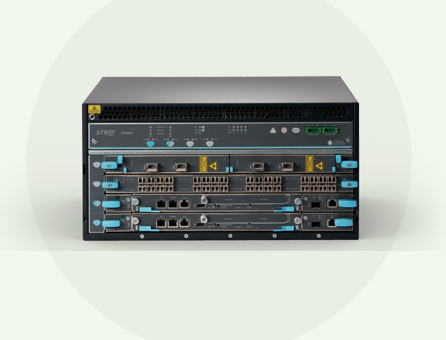

Juniper EX9204-BASE3C-AC switch managed rack-mountable |
Device Type |
Switch – L3 – managed |
Enclosure Type |
Rack-mountable 1U |
Subtype |
Network hubs and switches |
Built-in Devices |
Midplane |
Performance |
Backplane switching capacity: 3 Tbps, Per slot per fabric: 1.5 Tbps |
Chassis Airflow Direction |
Front to back – AC 200/240V |
MAC Address Table Size |
1M entries |
Jumbo Frame Support |
9192 bytes |
Features |
Access Control List (ACL) support, ARP support, BOOTP support, DHCP relay, DHCP server, DiffServ support, DoS attack prevention, Ethernet Virtual Private Network (EVPN), Fan tray, Firewall protection, Graceful Route Engine Switchover (GRES), GRE tunneling, High Availability, Hot swap module replacement, ICMP Router Discovery Protocol (IRDP), IGMP snooping, In-Service Software Upgrade (ISSU), Internet Control Message Protocol (ICMP), IPv4 support, IPv6 support, J-Flow, Load balancing, Management Information Base (MIB), Management Information Base (MIB) II, MLD snooping, Modular design, Multiple Spanning Tree Protocol (MSTP) support, Neighbor Discovery Protocol (NDP), Non-Stop Bridging (NSB), Non-Stop Routing (NSR), NTP time synchronization, OpenFlow support, Port mirroring, Quality of Service (QoS), Rapid Spanning Tree Protocol (RSTP) support, RARP support, Redundant hot swappable fans, sFlow, SNTP support, Spanning Tree Protocol (STP) support, Strict Priority (SP), Syslog support, Temperature sensor, Virtual Extensible LAN (VXLAN), Virtual Private LAN Service (VPLS), VLAN Spanning Tree Protocol (VSTP), VLAN support, VPN support, Weighted Random Early Detection (WRED), Weighted Round Robin (WRR) queuing |
Compliant Standards |
IEEE 802.1ab (LLDP), IEEE 802.1ad, IEEE 802.1D, IEEE 802.1p, IEEE 802.1Q, IEEE 802.1Qau, IEEE 802.1Qaz, IEEE 802.1Qbb, IEEE 802.1Qbg, IEEE 802.1s, IEEE 802.1w, IEEE 802.3ad (LACP), IEEE 802.3x |
Power Type |
Internal Power Supply / Power Provided 2520 |
Power Consumption Operational |
410 watts / Frequency Required 50/60 hertz |
OS Required |
Juno |
Dimensions |
Width 17.4 in x Depth 27.8 in x Height 8.7 in Weight 68.34 |
Support and Services |
Manufacture Warranty Available |
|
