Product Description |

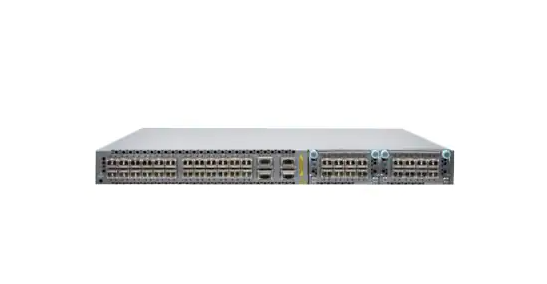

Juniper EX4600-40F-AFI switch 24 ports managed rack-mountable |
Device Type |
Switch – 24 ports – L3 – managed |
Enclosure Type |
Rack-mountable 1U |
Subtype |
Gigabit Ethernet |
Ports |
24 x 1 Gigabit SFP/ 10 Gigabit SFP+ + 4 x 40 Gigabit QSFP+ (breakout compatible) |
Performance |
Switching capacity: 1.07 Bpps, Switching capacity: 1.44 Tbps |
Chassis Airflow Direction |
Back to front – hot Plug |
MAC Address Table Size |
288K entries |
Jumbo Frame Support |
9216 bytes |
Features |
12 MB shared buffer, Access Control List (ACL) support, ARP support, BOOTP support, Class of Service (CoS), Cut-through, Data Center Bridging Exchange (DCBX) support, DHCP relay, DHCP server, DHCP snooping, DoS attack prevention, Dynamic ARP Inspection (DAI), FCoE support, Graceful Route Engine Switchover (GRES), High Availability, IGMP filtering, IPv6 support, Low-latency queuing (LLQ), MAC address filtering, Multiple Spanning Tree Protocol (MSTP) support, Non-Stop Bridging (NSB), Non-Stop Routing (NSR), Priority-based flow control, Quality of Service (QoS), Rapid Spanning Tree Protocol (RSTP) support, RARP support, Redundant hot swappable fans, Redundant trunk group (RTG), sFlow v5, Smoothed Deficit Weighted Round Robin (SDWRR), SNTP support, Spanning Tree Protocol (STP) support, Store and forward, Trunking, Virtual Chassis technology, VLAN Spanning Tree Protocol (VSTP), VLAN support, VPN support, Weighted Random Early Detection (WRED) |
Compliant Standards |
IEEE 802.1ab (LLDP), IEEE 802.1ad, IEEE 802.1D, IEEE 802.1p, IEEE 802.1Q, IEEE 802.1Qau, IEEE 802.1Qaz, IEEE 802.1Qbb, IEEE 802.1Qbg, IEEE 802.1s, IEEE 802.1w, IEEE 802.3ad (LACP), IEEE 802.3x |
Power Type |
Internal Power Supply |
Power Consumption Operational |
279 watts / Frequency Required 50/60 hertz |
80 Plus Certification |
80 PLUS Silver |
Dimensions |
Width 17.4 in x Depth 20.5 in x Height 1.7 in Weight 21.83 |
Support and Services |
Service Request Manager: https:// support.juniper.net/support or by telephone 1-888-314-5822 toll free U.S., Canada, and Mexico |
|
