Product Description |

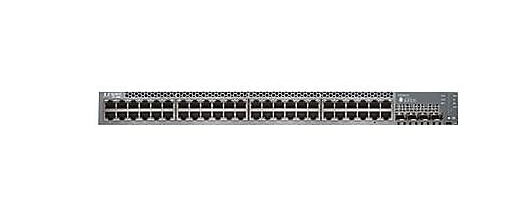

Juniper EX3400-48T-DC- switch 48 ports managed rack-mountable |
Device Type |
Switch – 48 ports – L3 – managed – |
Enclosure Type |
Rack-mountable 1U |
Subtype |
Gigabit Ethernet |
Ports |
48-port 10/100/1000BaseT Ethernet Switch with 4 x 1/10GbE SFP/SFP+, 2 x 40GbE QSFP+ |
Performance |
Switching capacity (64-byte packet size) 288 Gbps throughput: 214 Mpps |
Chassis Airflow Direction |
Front to back |
MAC Address Table Size |
32000 entries |
Jumbo Frame Support |
9216 bytes |
Features |
Access Control List (ACL) support, ARP support, Auto-uplink (auto MDI/MDI-X), BOOTP support, Cable Diagnostics Function, Captive Portal, Class of Service (CoS), DHCP client, DHCP proxy, DHCP relay, DHCP server, DHCP snooping, DiffServ Code Point (DSCP) support, DiffServ support, DoS attack prevention, Dynamic ARP Inspection (DAI), Energy Efficient Ethernet, Graceful Route Engine Switchover (GRES), ICMP Router Discovery Protocol (IRDP), Internet Control Message Protocol (ICMP), IP Precedence, IPv6 support, MACsec support, Management Information Base (MIB), Management Information Base (MIB) II, Multiple Spanning Tree Protocol (MSTP) support, Multiple VLAN Registration Protocol (MVRP), Neighbor Discovery Protocol (NDP), Non-Stop Bridging (NSB), Non-Stop Routing (NSR), NTP time synchronization, Per-VLAN Spanning Tree Plus (PVST+), Port mirroring, Quality of Service (QoS), Rapid Spanning Tree Protocol (RSTP) support, RARP support, Redundant trunk group (RTG), sFlow, Smoothed Deficit Weighted Round Robin (SDWRR), SNTP support, Spanning Tree Protocol (STP) support, Store and forward, Strict Priority (SP), System log, Tagged VLAN, Temperature sensor, Virtual Chassis technology, Virtual Route Forwarding-Lite (VRF-Lite), VLAN Spanning Tree Protocol (VSTP), VLAN support, Zero Touch Auto Provisioning |
Compliant Standards |
ANSI/TIA-1057, IEEE 802.1ab (LLDP), IEEE 802.1ad, IEEE 802.1ae, IEEE 802.1ag, IEEE 802.1ak, IEEE 802.1BR, IEEE 802.1D, IEEE 802.1p, IEEE 802.1Q, IEEE 802.1s, IEEE 802.1w, IEEE 802.1x, IEEE 802.3, IEEE 802.3ab, IEEE 802.3ad (LACP), IEEE 802.3ae, IEEE 802.3u, IEEE 802.3z |
Power Type |
Internal Power Supply |
Power Consumption Operational |
120 Watt |
Dimensions |
Width 17.4 in x Depth 13.8 in x Height 1.7 in |
Weight |
13.01 |
Support and Services |
Enhanced limited lifetime switch hardware warranty |
|
