Description

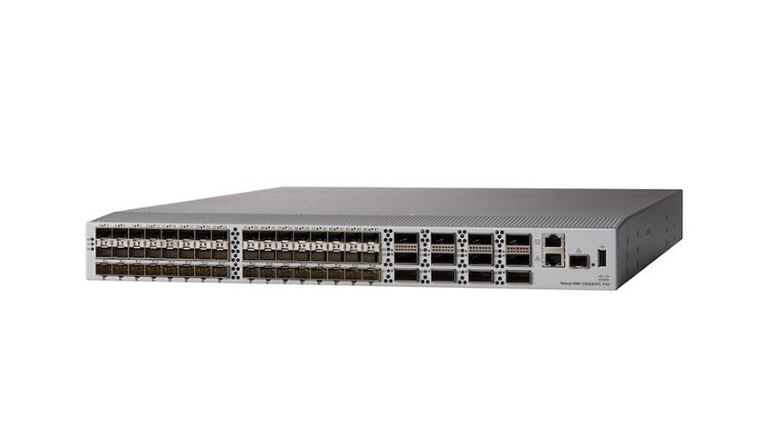

Shop Cisco Nexus N9K-C92300YC 72 Ports Rack Mountable Switch
Built on the latest Cisco Cloud Scale technology, the Cisco Nexus 9200 platform consists of industry-leading ultra-high-density fixed-configuration data center switches with line-rate Layer 2 and 3 features that support enterprise and commercial applications, service provider hosting, and cloud computing environments.
These switches support a wide range of port speeds with flexible combinations of 1/10/25/40/50/100-Gbps connectivity in compact form factors.
Using the widely deployed industry-leading Cisco NX-OS Software operating system, the Cisco Nexus 9200 platform is designed for programmable fabric, which offers flexibility, mobility, and scale for service providers and Infrastructure-as-a-Service (IaaS) and cloud providers.
It is also designed for the programmable network, which automates configuration and management for customers who want to take advantage of the DevOps operation model and tool sets.
| Product Description | Cisco Nexus 9272Q – switch – 72 ports – managed – rack-mountable |
| Device Type | Switch – 72 ports – L3 – managed |
| Enclosure Type | Rack-mountable 2U |
| Subtype | 40 Gigabit Ethernet |
| Ports | 72 x 40 Gigabit QSFP+ |
| Performance | Bandwidth: 6.1 Tbps |
| Capacity | Longest prefix match (LPM) entries (IPv4): 256000 ¦ Host table entries (IPv4): 256000 ¦ IPv4 routes (Multicast): 32000 ¦ IGMP groups: 32000 ¦ Virtual interfaces (VLANs): 4096 ¦ Virtual Routing and Forwarding (VRF) entries: 16000 ¦ ECMP groups: 256 ¦ MST instances: 64 |
| MAC Address Table Size | 256K entries |
| Routing Protocol | OSPF, RIP-2, BGP, EIGRP, PIM-SM, PIM-SSM, MSDP, ECMP, MPLS |
| Remote Management Protocol | HTTP, HTTPS |
| Features | Virtual Extensible LAN (VXLAN), 30 MB shared buffer |
| Power Redundancy | Optional |
| Dimensions (WxDxH) | 17.4 in x 24.5 in x 3.5 in |
| Weight | 24.69 lbs |
| Manufacturer Warranty | 1-year warranty |
MPN: N9K-C9272Q
