| Product Description |

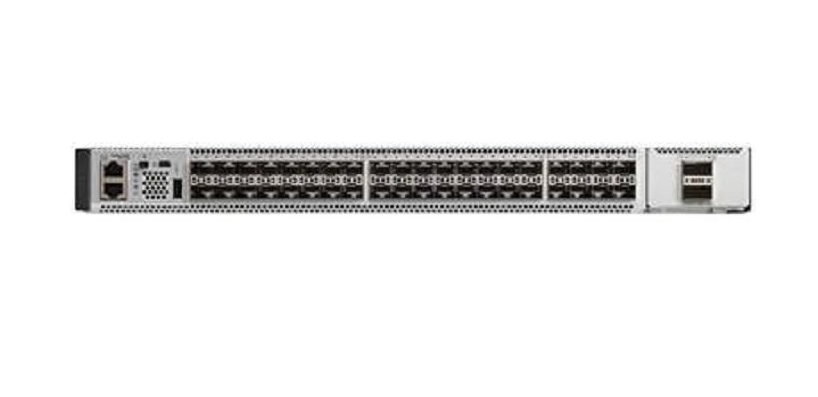

Cisco Catalyst 9500 – Network Essentials – switch – 40 ports – managed – rack-mountable |
| Device Type |
Switch – 40 ports – L3 – managed |
| Enclosure Type |
Rack-mountable 1U |
| Subtype |
10 Gigabit Ethernet |
| Ports |
40 x 10 Gigabit SFP+ |
| Power Over Ethernet (PoE) |
UPOE |
| Performance |
Switching capacity (full duplex): 480 Gbps ¦ Forwarding rate: 720 Mpps |
| Capacity |
Routing table entries: 64000 ¦ Indirect IPv4 routes: 64000 ¦ Host IPv4 routes: 32000 ¦ Indirect IPv6 routes: 32000 ¦ Host IPv6 routes: 16000 ¦ Multicast scale: 48000 ¦ QoS ACL scale: 18000 ¦ Security ACL scale: 18000 ¦ FNF entries: 512000 ¦ VLAN IDs: 4000 ¦ Switched virtual interfaces (SVIs): 4000 |
| MAC Address Table Size |
64K entries |
| Jumbo Frame Support |
9198 bytes |
| Routing Protocol |
OSPF, IS-IS, RIP-1, RIP-2, BGP, EIGRP, IGMP, VRRP, PIM-SM, PIM-SSM, MSDP, RIPng, MPLS |
| Remote Management Protocol |
SNMP 1, RMON 1, RMON 2, SNMP, SNMP 3, SNMP 2c, TFTP, NETCONF, RESTCONF |
| Features |
DHCP support, NAT support, PAT support, IGMP snooping, Syslog support, IPv6 support, Non-Stop Forwarding (NSF), Stateful switchover (SSO), Class-Based Weighted Fair Queuing (CBWFQ), Weighted Random Early Detection (WRED), Virtual Route Redundancy Protocol (VRRP) support, Access Control List (ACL) support, Quality of Service (QoS), MLD snooping, Non-Stop Routing (NSR), LLDP support, Remote Switch Port Analyzer (RSPAN), NetFlow, Virtual Routing and Forwarding (VRF), Flexible NetFlow (FNF), MACsec support, built-in ASIC, Control plane protection (CoPP), Virtual Extensible LAN (VXLAN), Location ID Separation Protocol (LISP), Application Visibility and Control (AVC), Open Shortest Path First (OSPF), TrustSec support, VLAN Double Tagging (Q-in-Q), Ethernet over MPLS (EoMPLS), Hierarchical Virtual Private LAN Service (H-VPLS), Layer 3 VPN (L3VPN) support, Zero-touch provisioning (ZTP), CoAP support, Switched Port Analyzer (SPAN), Cisco StackWise Virtual, Encapsulated Remote SPAN (ERSPAN), Security Group Tag (SGT) caching, Security Group Access Control List (SGACL), IT Service Management (ITSM) integration, third-party IP Address Management (IPAM) integration |
| Compliant Standards |
IEEE 802.3, IEEE 802.3u, IEEE 802.3z, IEEE 802.1D, IEEE 802.1Q, IEEE 802.3ab, IEEE 802.1p, IEEE 802.3x, IEEE 802.3ad (LACP), IEEE 802.1w, IEEE 802.1x, IEEE 802.3ae, IEEE 802.1s, IEEE 802.1ae |
| Power |
AC 120/230 V (50 – 60 Hz) |
| Power Redundancy |
Optional |
| Dimensions (WxDxH) |
17.5 in x 21.5 in x 1.7 in |
| Manufacturer Warranty |
Limited lifetime warranty |
|
