Sale!

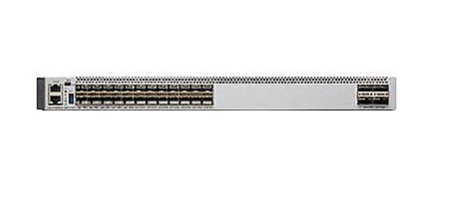

Buy Cisco C9500-24Y4C-A Catalyst 24 Ports Rack Mountable Network Advantage

$15,916.00

Bar None Technologies offers Cisco C9500-24Y4C-A Catalyst 24 Ports Rack Mountable Network Advantage, backed by Limited lifetime warranty.  For quantity, educational or government discounts on the Cisco C9500-24Y4C-A, please contact the Bar None Sales Team at 844-800-8873 or via email at sales@barnonetech.com.

Description

Shop Cisco C9500-24Y4C-A Catalyst 24 Ports Rack Mountable Network Advantage

The Cisco Catalyst 9500 Series Switches are the next generation of enterprise-class core and aggregation layer switches, supporting full programmability and serviceability.

Based on an x86 CPU, the Catalyst 9500 Series is Cisco’s lead purpose-built fixed core and aggregation enterprise switching platform, built for security, IoT, and cloud.

The Catalyst 9500 Series is the industry’s first purpose-built 40 Gigabit Ethernet line of switches targeted for the enterprise campus.

A subscription license is required with this product.

Product Description Cisco Catalyst 9500 – Network Advantage – switch – 24 ports – managed – rack-mountable
Device Type Switch – 24 ports – L3 – managed
Enclosure Type Rack-mountable 1U
Subtype 25 Gigabit Ethernet
Ports 24 x 25 Gigabit SFP28
Performance Switching capacity (full duplex): 1.6 Tbps ¦ Forwarding rate: 1 Bpps
Capacity Routing table entries: 80000 ¦ Indirect IPv4 routes: 212000 ¦ Host IPv4 routes: 90000 ¦ Indirect IPv6 routes: 212000 ¦ Host IPv6 routes: 90000 ¦ Multicast scale: 32000 ¦ QoS ACL scale: 16000 ¦ Security ACL scale: 270000 ¦ FNF entries: 96000 ¦ VLAN IDs: 4000 ¦ Switched virtual interfaces (SVIs): 4000
MAC Address Table Size 64K entries
Jumbo Frame Support 9198 bytes
Routing Protocol OSPF, IS-IS, RIP-2, BGP, EIGRP, IGMP, VRRP, PIM-SM, PIM-SSM, MSDP, RIPng, MPLS
Remote Management Protocol SNMP 1, RMON 1, RMON 2, SNMP, SNMP 3, SNMP 2c, TFTP, NETCONF, RESTCONF
Features DHCP support, NAT support, PAT support, trunking, MPLS support, Non-Stop Forwarding (NSF), Stateful switchover (SSO), Class-Based Weighted Fair Queuing (CBWFQ), Weighted Random Early Detection (WRED), Spanning Tree Protocol (STP) support, Virtual Route Redundancy Protocol (VRRP) support, Access Control List (ACL) support, Quality of Service (QoS), Non-Stop Routing (NSR), Remote Switch Port Analyzer (RSPAN), Hot Standby Router Protocol (HSRP) support, Virtual Routing and Forwarding (VRF), Maximum Likelihood Demodulation (MLD), Flexible NetFlow (FNF), Multicast Source Discovery Protocol (MSDP), MACsec support, Control plane protection (CoPP), integrated Wireshark, VLAN Double Tagging (Q-in-Q), Ethernet over MPLS (EoMPLS), Hierarchical Virtual Private LAN Service (H-VPLS), Private VLAN, Layer 3 VPN (L3VPN) support, CoAP support, Switched Port Analyzer (SPAN)
Compliant Standards IEEE 802.3, IEEE 802.3u, IEEE 802.1D, IEEE 802.1Q, IEEE 802.3ab, IEEE 802.1p, IEEE 802.3x, IEEE 802.3ad (LACP), IEEE 802.1w, IEEE 802.1x, IEEE 802.3ae, IEEE 802.1s, IEEE 802.1ae, IEEE 802.3ba
Power AC 120/230 V (50 – 60 Hz)
Power Redundancy Optional
Dimensions (WxDxH) 17.5 in x 18 in x 1.7 in
Weight 20.99 lbs
Manufacturer Warranty Limited lifetime warranty
MPN: C9500-24Y4C-A

Additional information

Weight 21 lbs
Dimensions 17.9 × 19 × 2.0 in
