Buy Axis 01759-001 P5654-E 60Hz PTZ Network Camera | Bar None Technologies

$1,480.00

For government, education or quantity discounts on Axis 01759-001 P5654-E, please call your Bar None Sales Team at 844-800-8873 or email us at Sales@barnonetech.com



Add to quote request
SKU: 01759-001 Categories: , , Tags: , ,

Description

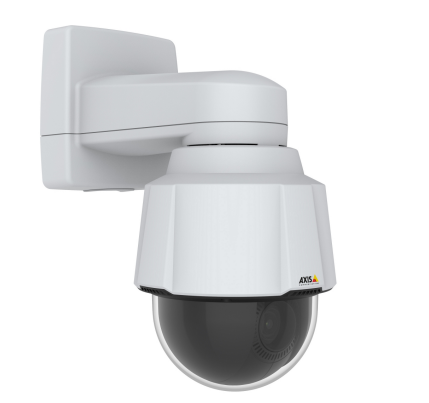

Axis 01759-001 P5654-E 60Hz PTZ Network Camera

  • AXIS P5654-E PTZ Network Camera is cost effective, high performance PTZ camera that offers wide area coverage with 77° field of view. It features Lightfinder 2.0 to capture low-light images with more saturated colors and sharper images of moving objects. Forensic WDR for clarity even when there’s both dark and light areas in the scene. Electronic image stabilization for stable images and enhanced security features including signed firmware and secure boot. With NEMA 4X and lK10 ratings its resistant to both harsh weather conditions and impacts. Plus, you get extended capabilities for advanced analytics.
  • Key Features
  • HDTV 720p with 21x optical zoom
  • Lightfinder 2.0 and Forensic WDR
  • Signed firmware and secure boot.
  • Electronic image stabilization
  • Zipstream with support for H.264 / H265



Features Axis 01759-001 P5654-E 60Hz PTZ Network Camera

Camera

























System on Chip (SoC)





Video























Network
  • Model and MPN
    • Axis P5654-E (60Hz) / 01759-001
  • Image Sensor
    • 1 /2.8″ progressive scan RGB CMOS
  • Lens
    • Varifocal, 4.0-84.6 mm, F1.6-4.5
    • Horizontal field of view 77.0°-3.6°
    • Vertical field of view 43.1°-2.0°
    • Autofocus and auto-Iris.
  • Day and Night
    • Automatically removable infrared-cut filter
  • Minimum Illumination (with Lightfinder)
    • Color 0.11 Lux at 30 IRE F1.6
    • Color 0.1 Lux at 30 IRE F1.6
    • B/W 0.03 Lux at 50 IRE F1.6
    • B/W 0.01 Lux at 30 IRE F1.6
  • Shutter Speed
    • 1/66500 s to 2 s
  • Pan Tilt/Zoom
    • Pan 360° endless 0.1° -350° /s
    • Tilt 180° 0.1°-350°/s
    • Zoom: 21x optical, 12x digital, Total 252x zoom
    • 256 present positions, e-flip, limited guard tour, control queue,
    • on-screen directional indicator, set new pan 0″, focus window, focus recall.
  • Model
    • ARTPEC-7
  • Memory
    • 1024 MB RAM, 512 MB Flash
  • Compute Capabilities
    • Machine learning processing unit MLPU
  • Video Compression
    • H.264 (MPEG-4 Part 10/AVC) Baseline, Main and High Profiles
    • H.265 (MPEG-H Part 2/HEVC) Main Profile
    • Motion JPEG
  • Resolution
    • 1280×720 HDTV 720p to 320x 180
  • Frame Rate
    • Up to 60/50 fps (60/50 Hz) in all resolutions
  • Video Streaming
    • Multiple, individually configurable streams in H.264, H.265
    • Motion JPEG
    • Axis Zipstream technology in H.264, and H.265
    • Controllable frame rate and bandwidth
    • VBR/ABR/MBR H.264/H.265
    • Low Latency Mode
  • Image Settings
    • Compression, saturation, contrast, brightness, sharpness, local contrast
    • white balance, exposure control, exposure zones, Forensic WDR: Up to 120 dB
    • depending on scene, defogging, day/night shift level, tone mapping, fine tuning of
    • low-light behavior, rotation: auto 0°, 180°, text and image overlay, image freeze on PTZ
    • Electronic image stabilization, scene profiles, 20 individual polygon privacy masks.
  • Network Security
    • IP address filtering, HTTPS encryption, IEEE 802.1x (EAP-TLS)
    • network access control, user access log, centralized certificate management
  • Network Protocols
    • IPv4, IPv6 USGv6, ICMPv4/ICMPv6, HTTP, HTTP/2, HTTPS, TLS
    • QoS Layer 3 DiffServ, FTP, SFTP, CIFS/SMB, SMTP, mDNS (Bonjour),
    • UPnP, SNMP v1/v2c/v3 (MIB-11), DNS/DNSv6, DDNS, NTP, NTS
    • RTSP, RTP, SRTP/RTSPS, TCP, UDP, IGMPv1/v2/v3, RTCP, ICMP,
    • DHCPv4/v6, ARP, SSH, NTCIP, LLDP, CDP, MQTT v3.1.1, Syslog,
    • Link-Local address (ZeroConf)
Casing
  • IP66- NEMA 4X- and 1K10-rated.
  • Aluminum casing, Polycarbonate (PC) casing
  • Color: NCS S 1002-B, repaintable skin color
  • For repainting instructions of casing and
  • impact on warranty contact your Axis partner.
Power
  • Axis PoE+ midspan 1-port:
    • IEEE 802.3at Type 2 Class 4
  • Camera consumption
    • typical 8 W, max 16 W
    • (PoE+ midspan not included)
Connectors
  • RJ45, 10BASE-T/100BASE-TX PoE.
  • RJ45 push connector (IP66) included.
Dimension
  • Height: 217 mm (8.54 in)
Weight
  • 2.5kg (5.5 lbs)
Temperatures
  • Operating Temperature
    • -30°C to 50°C (-22°F to 122°F)
  • Humidity
    • 10-100% RH (condensing)
  • Storage Conditions
    • -40 °C to 65 °C (-40 °F to 149 °F)
    • 5-95% RH (Non-condensing)
Optional Accessories
  • AXIS T94A02L recessed mount,
  • AXIS T91B Mounts
  • Outdoor RJ45 Cable with premounted connectors
  • AXIS T8133 Midspan 30 W 1-Port
  • Repaintable skin covers.
Included Accessories.
  • Installation guide
  • Windows decoder (1-user license)
  • RJ45 Push-pull Connector (IP66)
  • Hard ceiling mount
  • Smoked dome
  • Spring pipe adaptor
  • U-profile pipe adaptor
Languages
  • English, German, French,
  • Spanish, Russian, Simplified Chinese,
  • Japanese, Korean, Portuguese,
  • Traditional Chinese
Video Management


  • Axis Companion,
  • Axis Camera Station
  • Video Management Software from
    • Axis Application Development Partners
Warranty
  • 5- Year Warranty

MPN: 01759-001

Model: P5654-E
