Product Description |

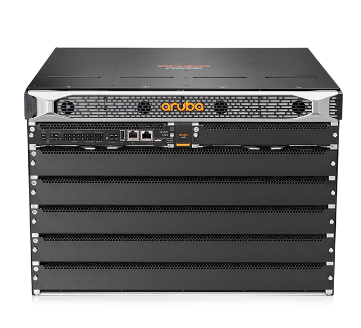

HPE Aruba R0X26A 6405 Switch Bundle – switch – managed – rack-mountable – with HPE Aruba 6405 Chassis Switch |
Device Type |
Switch – L4 – managed – stackable – with HPE Aruba 6405 Chassis Switch |
Enclosure Type |
Front to back airflow rack-mountable 7U |
Performance |
Routing/switching capacity: 14 Tbps ¦ Throughput: 10 Bpps |
Capacity |
Virtual interfaces (VLANs): 2000 ¦ IPv4 routing table entries: 32000 ¦ IPv6 routing table entries: 32000 ¦ Multicast routes: 8000 ¦ Unicast entries (IPv6): 64000 ¦ Unicast entries (IPv4): 64000 ¦ IGMP groups: 8000 ¦ MLD groups: 4000 |
Jumbo Frame Support |
Yes |
Routing Protocol |
OSPF, BGP, OSPFv3 |
Remote Management Protocol |
SNMP 1, SNMP 2, SNMP 3, IPv4, IPv6 |
Features |
Power over Ethernet (PoE), Quality of Service (QoS), Deficit Weighted Round Robin (DWRR), non-blocking ports, Strict Priority (SP), CPU protection, Protocol Independent Multicast (PIM), Bootstrap Router (BSR) Mechanism, draft-ietf-savi-mix, Virtual Switch Extension (VSX) |
Compliant Standards |
IEEE 802.1D, IEEE 802.1Q, IEEE 802.3ab, IEEE 802.3af, IEEE 802.1w, IEEE 801.1p, IEEE 802.1t, IEEE 802.1v, IEEE 802.3ak, IEEE 802.3at, IEEE 802.3ax, IEEE 802.3bt |
Power |
AC 120/230 V (50/60 Hz) |
Dimensions (WxDxH) |
17.4 in x 17.7 in x 12.1 in |
Weight |
64.59 lbs |
Manufacturer Warranty |
Limited lifetime warranty |
|
