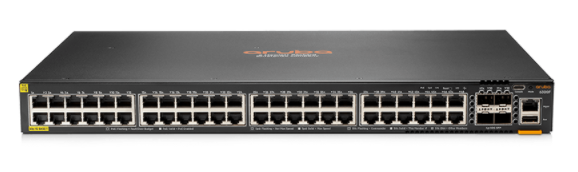

Buy Aruba JL665A Switch 6300F 48 Port

$9,125.00

For government or educational discounts as well as quantity discounts on HPE Aruba JL665A 6300M 48-port 1GbE and 4-port SFP56 Switch please contact your BNT Sales Team via email at sales@barnonetech.com or by phone at 844-800-8873.

Description

Bar None Technologies offers the Aruba JL665A 6300F 48-port 1GbE Class 4 PoE and 4-port SFP56 Switch  which is an enterprise-class access layer solution that’s simple and secure.

  • System Switching Capacity: 880 Gbps
  • System Throughput Capacity: 660 Mpps
  • Stack Size: 10 member using 10G SFP ports
  • Max. Stacking Distance: Up to 10 kms with long range transceivers
  • Stacking Bandwidth: 200 Gbps



  • 48x ports 10/100/1000BaseT PoE+ ports supporting up to 30W per port
  • 4x 1/10/25G SFP ports (50G capability for use with 50GbE DACs for interconnect and VSF stacking)
  • Internal (fixed) power supply (950W), fixed fans
  • Up to 720W of PoE+
  • Dimensions: (H) 4.39 cm x (W) 44.2 cm x (D) 32.7 cm (1.73″ x 17.4″ x 12.9″)
  • Weight: 5.10 kg (11.24 lbs)



  • 1x USB-C Console Port
  • 1x OOBM port
  • 1x USB Type A Host port
  • 1x Bluetooth dongle for use with Aruba CX Mobile App
  • Up to 2880W of Class 6: JL659A
  • Up to 1440W of Class 6: JL660A
  • Up to 1440W of Class 4: JL661A
  • Up to 720W of Class 4: JL662A
  • 720W of Class 4: JL665A
  • 370W of Class 4: JL666A
  • X371 12VDC 250W 100-240VAC Power Supply (JL085A)
  • X371 12VDC 250W 100-240VAC Power-to-Port Power Supply (JL760A)
  • X372 54VDC 680W 100-240VAC Power Supply (JL086A)
  • X372 54VDC 1050W 110-240VAC Power Supply (JL087A)
  • X372 54VDC 1600W 110-240VAC Power Supply (JL670A)
  • 6300M 250W 36-72VDC PSU (JL757A)
  • 6300M 1050W 36-72VDC (JL758A)
  • 6300M Fan Tray (JL669A)
  • 6300M Power-to-Port Fan Tray (JL761A)
  • Mounts in an EIA standard 19 in. telco rack or equipment cabinet. Horizontal surface mounting only. 2-post rack kit included.

Additional information

Weight 15 lbs
Dimensions 2 × 18 × 16 in
