Description

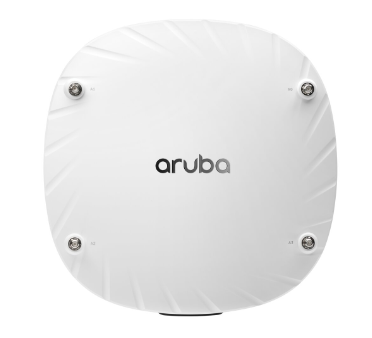

Buy Aruba JZ342A AP-534 (US) TAA Dual Radio 4×4:4 802.11ax External Antennas Unified Campus AP
| Product Description | HPE Aruba AP-534 (US) TAA – Campus – wireless access point – TAA Compliant |
| Device Type | Wireless access point |
| Form Factor | External – indoor |
| Data Link Protocol | IEEE 802.11b, IEEE 802.11a, IEEE 802.11g, IEEE 802.11n, IEEE 802.11ac, Bluetooth 5.0, IEEE 802.11ax (Wi-Fi 6) |
| Frequency Band | 2.4 GHz, 5 GHz |
| Performance | Maximum data rate (2.4 GHz): 1150 Mbps ¦ Maximum data rate (5 GHz): 2.4 Gbps ¦ Aggregate bandwidth: 3.55 Gbps |
| Capacity | Wireless clients per Wi-Fi radio: 1024 ¦ OFDMA units: 37 ¦ BSSIDs per radio: 16 |
| Included Accessories | Mounting brackets |
| OS Required | ArubaOS, InstantOS |
| Power Over Ethernet (PoE) Supported | PoE |
| TAA Compliant | Yes |
| Dimensions (WxDxH) | 9.4 in x 9.4 in x 2.2 in |
| Weight | 2.2 lbs |
| Manufacturer Warranty | Limited lifetime warranty |
- The Aruba JZ342A 530 Series Campus Wireless Access Points which are designed to deliver high-performance connectivity for extreme high-density deployments of mobile and IoT. The 530 series is designed to simultaneously serve multiple clients and traffic types with dual radios.
- AI-powered wireless RF and client connectivity optimization.
- Dual-radio (8×8 + 4×4 MIMO) 802.11ax AP with up-and downlink OFDMA and Multi-User MIMO (MU-MIMO).
- Optional tri-radio mode with two 5GHz and one 2.4GHz radio (all 4×4 MIMO).
- Aruba’s unique Smart PoE allows for the use of existing switching infrastructure to power up APs.
- Maximum data rates of 4.8Gbps in the 5GHz band and 1,150Mbps in the 2.4GHz band (for an aggregate peak data rate of 5.95Gbps).
- Supports all mandatory and several optional 802.11ax features, and the full 37 OFDMA Resource Units (RUs) with up to 1,024 associated client devices per radio.
MPN: JZ342A
