Description

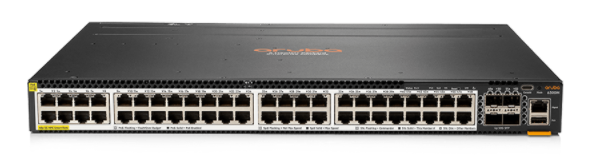

Bar None Technologies offers the HPE Aruba JL659A 6300M 48-port Switch which is an enterprise-class access layer solution that’s simple and secure.
- System Switching Capacity: 880 Gbps
- System Throughput Capacity: 660 Mpps
- Stack Size: 10 member using 10G SFP ports
- Max. Stacking Distance: Up to 10 kms with long range transceivers
- Stacking Bandwidth: 200 Gbps
- 48x ports Smart Rate 100M/1G/2.5G/5GBaseT Class 6 PoE ports supporting up to 60W per port
- 4x 1/10/25G SFP ports (50G capability for use with 50GbE DACs for interconnect and VSF stacking)
- 2 field-replaceable, hot-swappable power supply slots. 1 minimum power supply required (order separately)
- Delivers up to 2880W of Class 6 PoE Power
- Two field-replaceable, hot-swappable fan trays (included), no empty slot
- Dimensions: (H) 4.4 cm x (W) 44.2 cm x (D) 38.5 cm (1.73″ x 17.4″ x 15.2″)
- Weight: 6.71 kg (14.8 lbs)
- 1x USB-C Console Port
- 1x OOBM port
- 1x USB Type A Host port
- 1x Bluetooth dongle for use with Aruba CX Mobile App
- Up to 2880W of Class 6: JL659A
- Up to 1440W of Class 6: JL660A
- Up to 1440W of Class 4: JL661A
- Up to 720W of Class 4: JL662A
- 720W of Class 4: JL665A
- 370W of Class 4: JL666A
- X371 12VDC 250W 100-240VAC Power Supply (JL085A)
- X371 12VDC 250W 100-240VAC Power-to-Port Power Supply (JL760A)
- X372 54VDC 680W 100-240VAC Power Supply (JL086A)
- X372 54VDC 1050W 110-240VAC Power Supply (JL087A)
- X372 54VDC 1600W 110-240VAC Power Supply (JL670A)
- 6300M 250W 36-72VDC PSU (JL757A)
- 6300M 1050W 36-72VDC (JL758A)
- 6300M Fan Tray (JL669A)
- 6300M Power-to-Port Fan Tray (JL761A)
- Mounts in an EIA standard 19 in. telco rack or equipment cabinet. Horizontal surface mounting only. 2-post rack kit included.
